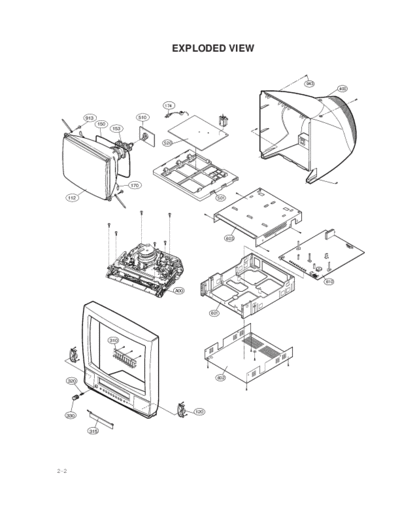

                                                  EXPLODED VIEW


                                                                            943
                                                                                        400



                                            174

            913                       510
                   150
                          153


                                            520




                                170

      112                                                       501




                                                                      603




                                                                                  610

                                                  A00




                                                              601




                         310




                                                                602
      320




                                                        120
  330


             315




2-2
                                                         The components identified by mark          is
                                                         critical for safety.
EXPLODED VIEW PARTS LIST                                 Replace only with part number specified.



  LOCA. NO     PART NO                 DESCRIPTIONS

    112      2426GCA40CP   CPT SET A48QAD220X 00A7ND
    120       120-D44D     SPEAKER,GENERAL C071P06K1452 ESTEC 16 OHM 3W/5
    150       150-D02M     COIL,DEGAUSSING,CU 20" 60T 15OH
    153      6150Z-1014A   DY DC20PLUB2
    170        170-A01F    CPT EARTH
    174        174-224G    POWER CORD H03VVH2-F VOLEX BSI 2000MM HSG
    300      3091V00268C   CABINET ASSY KKE20P30X W/O SECAM LG GERMANY
    310      5020V00401B   BUTTONKE-20P30 NON SET
    315      3580V00014Y   DOOR,CST, W/O SECAM
    320        320-075B    SPRING,KNOB
    330      5020V00402A   BUTTON
    400      3809V00195C   BACK COVER ASSY NO LABEL .
    501      4810V00206B   BRACKET,SMPS
    520      6871VDM125K   PWB ASSY,DEFLECTION MAIN2(025A)20",NARROW,CKD
    601      4810V00195C   BRACKET,MAIN
    602      4814V00158B   SHIELD BOTTOM
    603      4814V00157F   SHIELD TOP CASE(20/21") PAL ONLY,
    610      6871VMMA81J   PWB ASSY,MAIN(025A) KE,W/TXT,SCART,CKD
             6871VMMA81K   PWB ASSY,MAIN(025A) KE,W/O TXT,SCART,CKD
    913        332-057B    SCREW ASSY,HEXAGON HEAD
    943      1PTF0403116   SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
    A00      6721R-0105A   DECK ASSEMBLY,VIDEO D33(2HD, NP, VCR)




                                                                                                         2-3
