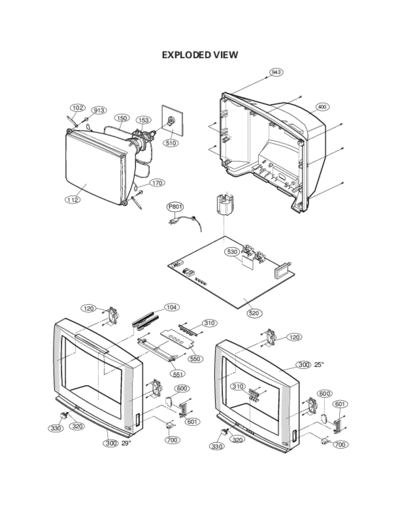

EXPLODED VIEW
943
102 400
913
150 153
510
170
112
P801
530
120 104
520
310
120
550
300 25"
551
600 310
600
601
601
330 320
700 320
300 29" 330 700
- 22 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
Part No.
No. Description
25" 29"
104 - 343-B52A SUPPORTER,PCB
112 2426GE020EP 2426VSF0013 CPT SET
120 120-C77G 120-C77G SPEAKER,FULLRANGE C122P02K1459 8 OHM 1
150 6140VC2001Q 6140VC2001R COIL,DEGAUSSING
153 6150Z-1040B 6150Z-1040B DY
170 170-844D 170-844D CPT EARTH
300 3091V00190M 3091V00167Q CABINET ASSY W//SIDE AV W/O EYE LG
3091V00190N - CABINET ASSY STEREO W/EYE LG
310 5020V00323B 5020V00508A BUTTON 4 KEY ABS TACT SWITCH
5020V00323A - BUTTON 4 KEY ABS
320 320-062J 320-062J SPRING,KNOB
330 5020V00324B 5020V00312B BUTTON,POWER ABS LGESY
5020V00324A - BUTTON,POWER
400 3809V00139F 3809V00123G BACK COVER ASSY 2PHONE SY LOCAL
3809V00139H - BACK COVER ASSY 2PHONE
520 6871VMMC19E 871VMMC19F PWB ASSY,MAIN
6871VMMD19C 6871VMMC19F PWB ASSY,MAIN K90VE
550 - 6871VSMD77B PWB ASSY,CTL 022A
551 - 4810V00133A BRACKET,CTL
600 6871VSMD78C 6871VSMD78C PWB ASSY,A/V 022A SIDE CHIN
6871VSMD78M - PWB ASSY,A/V 022A SIDE
601 4810V00132U 4810V00132U BRACKET,AV #51
4810V00132V - BRACKET,AV #50
700 0IGL120104A - IC,CDS SENSOR MODULE(P1201-04)
913 332-229G 332-229G SCREW HEXAGON HEAD(L:40,D:22)
943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
P801 6411VCH001A 6411VCH001A POWER CORD ASSY A001P201 CHINA 2110M
- 23 -
