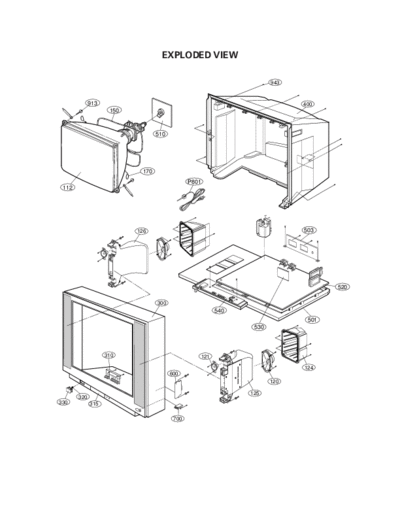

EXPLODED VIEW
943
913 400
150
510
170
P801
112
126 503
520
300
540
501
530
310 121
124
600
120
125
320
330 315
700
- 22 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
Part No.
No. Description
25" 29"
112 6341V25004A 6341V29009A CPT ASSY
120 120-D38C 120-D38C SPEAKER,MID-RANGE 8 OHM 15/25W
120-C77G 120-C77G SPEAKER,FULLRANGE C122P02K1459
121 6400VG0002A 6400VG0002A SPEAKER,TWEETER 8 OHM 10
124 3550V00068A 3550V00068A COVER,DOME PS 60HR
125 4810V00165A 4810V00165A BRACKET,DOME(R) PS 60HR
126 4810V00165B 4810V00165B BRACKET,DOME(L) PS 60HR
150 6140VC2005E 6140VC2005F COIL,DEGAUSSING
170 170-844G 170-844K CPT EARTH
300 3091V00A74A 3091V00356D CABINET ASSEMBLY
310 5020V00339A 5020V00339A BUTTON CONTROL 4KEY
315 3580V00038A 3581V00024A DOOR,CONTROL C
320 320-062E 320-070G SPRING,KNOB
330 5020V00337B 5020V00337B BUTTON
400 3809V00160B 3809V00169G BACK COVER ASSY
3809V00160H - BACK COVER ASSY
501 4810V00297A 4810V00223A BRACKET,MAIN
4810V00297E - BRACKET,MAIN 407AF
503 3500V00022A 3500V00022A BOARD,A/V (1P/1P)
3500V00022B 3500V00022B BOARD,A/V (1S/1P)
510 6871VSMB26D 6871VSMB26C PWB ASSY,CPT 022A (CPT/VM)
520 6871VMMB90A 6871VMMB90B PWB ASSY,MAIN 022A(SC+PH)
6871VMMB90C - PWB ASSY,MAIN 022A(PH+PH)
6871VMMB90E - PWB ASSY,MAIN 022A(PH+PH)
6871VMMB89C - PWB ASSY,MAIN 022A(PH+PH)Q20RE
540 6871VSMB27E 6871VSMB27E PWB ASSY,CONT
600 6871VSMB28E 6871VSMB28E PWB ASSY,A/V SIDE
700 0IGL120104A 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-229A 332-229M SCREW ASSY,HEXAGON HEAD SPECIAL NON
943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
P801 174-009V 174-009V POWER CORD(W/HOLD,HOUSING)L=400,4.0
