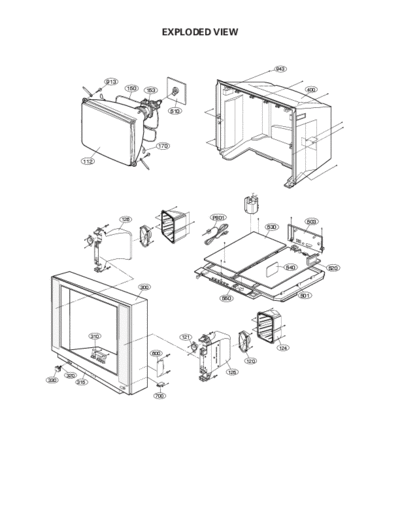

                                                  EXPLODED VIEW



                                                                                              943

                        913
                                150     153                                                                 400



                                                     510




                                               170

              112




                              126                                        P801
                                                                                                            503
                                                                                            530




                                                                                                    540           520


                                      300
                                                                                                          501
                                                                            550




                  310                                      121

                                                                                                  124
                                            600
                                                                                      120

                                                                                125
      320
330         315

                                              700




                                                                 - 1 -
                                                        The components identified by mark          is
                                                        critical for safety.
EXPLODED VIEW PARTS LIST                                Replace only with part number specified.



  LOCA. NO     PART NO                   DESCRIPTIONS

    112      6341V29006A   CPT ASSY,2426GF239AP
             2426GF239BW   CPT SET,A68QCU259X 66R7ND
    120       120-D38C     SPEAKER,MID-RANGE 8 OHM 15/25W
    121       120-C76G     SPEAKER,TWEETER C050TX-357K14 8 OHM
    124      3550V00068A   COVER,DOME
    125      4810V00165A   BRACKET,DOME(R)
    126      4810V00165B   BRACKET,DOME(L)
    150        150-201S    COIL,DEGAUSSING CU 29
