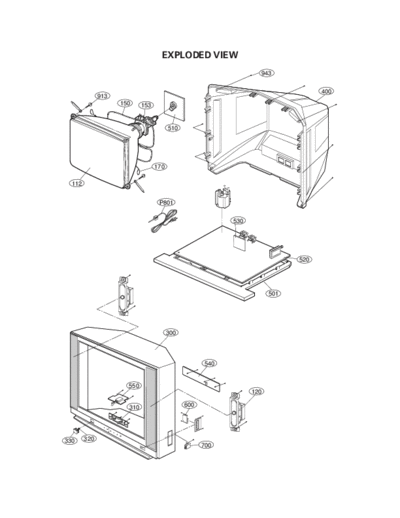

Image preview - the first page of the document
>> Download 118AEV documenatation <<
Text preview - extract from the document
EXPLODED VIEW
943
400
913
150 153
510
170
112
P801
530
520
501
300
540
550
120
310 600
330 320
700
- 22 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
Part No.
No. Description
25" 29"
112 2426GE259AJ 6335V29015A CPT SET
2426GE259AJ 2426GF239AR CPT SET LGEAP
120 6400VA0027A 6400VA0027A SPEAKER,GENERAL H165/051800A 8 OHM 10/1
150 150-D05Z 6140VC2005F COIL,DEGAUSSING
153 6150Z-1230F - DY
170 170-844G 170-844K CPT EARTH
300 3091V00278R 3091V00255Y CABINET ASSEMBLY GOLD
3091V00278Q CABINET ASSEMBLY SILVER
3091V00278T 3091V00255S CABINET ASSEMBLY LGEAP,40AF
310 5020V00459A 5020V00459A BUTTON,CONTROL 6KEY
320 320-062E 320-062E SPRING,KNOB
330 5020V00391A 5020V00391A BUTTON,POWER 1KEY
400 3809V00203J - BACK COVER ASSY(2-PHONE)
3809V00203A 3809V00188A BACK COVER ASSY
3809V00203C 3809V00188E BACK COVER ASSY LGEAP
- 3809V00188P BACK COVER ASSY(1 SC,1 PH)
501 3210V00043E 3210V00043E FRAME,MAIN V2 LGESY
510 6871VSMD76A 6871VSMD76B PWB ASSY,CPT/VM SY CKD 25" LG
520 6871VMMC19B - PWB ASSY,MAIN -Q40RQ
6871VMMC19A - PWB ASSY,MAIN -Q40VE
6871VMMC19P 6871VMMC19N PWB ASSY,MAIN -Q40VE
6871VMMC19M 6871VMMC19L PWB ASSY,MAIN -Q40VB
- 6871VMMC19T PWB ASSY,MAIN -Q40RE
6871VMMC19Z 6871VMMC19Y PWB ASSY,MAIN -Q40VQ
530 6871VSMN37A 6871VSMN37A PWB ASSY,PIP
540 6871VSMD77G 6871VSMD77G PWB ASSY,CONT 022A (CTL SY-CKD)Q40
6871VSMD77A 6871VSMD77A PWB ASSY,CONT 022A
550 6871VSMD80A 6871VSMD80A PWB ASSY,POWER 022A 29Q40 SY-MOS CKD
600 6871VSMD78A 6871VSMD78A PWB ASSY,A/V 022A (SY-CKD)SIDE Q40
6871VSMD78G 6871VSMD78G PWB ASSY,A/V 022A
700 0IGL120104A 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-229H 332-229H SCREW ASSY HEXAGON HEAD (L:40,D:18)
943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P) D4.0 L16.0
P801 6411VCH001A 6411VCH001A POWER CORD ASSY
