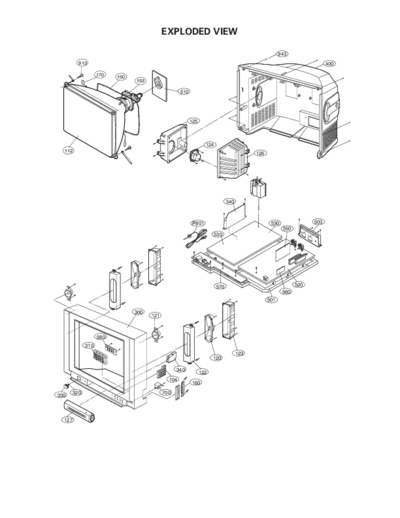

Image preview - the first page of the document
>> Download 073B-EV documenatation <<
Text preview - extract from the document
EXPLODED VIEW
943
913 400
170 150
153
510
125
124
112
126
540
P801 530 503
550
530
570 520
560
501
300
121
580
310
123
120
340
122
104
160
330 320 700
127
- 26 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
104 4980V00047B SUPPORTER,PCB
112 6341V29005A CPT ASSY,2426GF239AT 100HZ DY
120 6400VA0025A SPEAKER,C163P01K1450 ESTEC 8 OHM 15/25
121 120-C76G SPEAKER,TWEETER C050TX-357K14 8 OHM 10/
122 3110V00084A CASE,MIDDLE SPEAKER
123 3550V00117A COVER,MIDDLE SPEAKER
124 120-C78G SPEAKER,WOOFER C130R06K1457 8 OHM 10W/
125 3110V00080A CASE,WOOFER
126 3550V00103A COVER,WOOFER
127 6401VF0035B SPEAKER ASSY,DOME CENTER
150 150-201S COIL,DEGAUSSING CU 29" 440T 102 OHM
153 6150Z-1340F DY,DC29SLFL2
170 170-844K CPT EARTH 29" 98T
300 3091V00281B CABINET ASSY
310 5020V00427A BUTTON,CONTROL
320 320-070G SPRING,COIL
330 5020V00426A BUTTON,POWER
340 4470V00019A GEAR ASSY, MOVING CTR SPK
400 3809V00207B BACK COVER ASSY
501 4810V00259A BRACKET,MAIN
503 4810V00261A BRACKET,REAR A/V HIPS 2 PHONE
4810V00261C BRACKET,REAR A/V HIPS 2 SCART
510 6871VSM738A PWB ASSY,CPT MC006A CPT&VM
520 6871VMM637A PWB ASSY,MAIN (2 PHONE)
6871VMM637B PWB ASSY,MAIN (2 SCART)
530 6871VDM113A PWB ASSY,MAIN2 29",W/O ST-BY,W-RAN
540 6871VSM726A PWB ASSY,WIDE RANGE
550 6871VSM617A PWB ASSY,DIGIT 100HZ
560 6871VSM694A PWB ASSY,MEMORY
570 6871VSM685A PWB ASSY,CONTROL
580 6871VSM686A PWB ASSY,TACT-SWITCH
600 6871VSM620A PWB ASSY,SIDE-A/V
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0
P801 174-322D CORD,POWER W/FILTER L=300(179B)VDE
- 27 -
