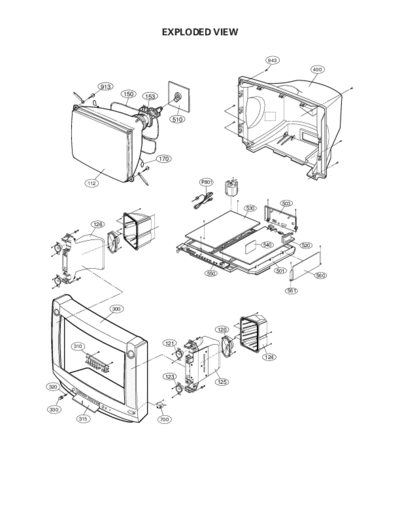

EXPLODED VIEW
943
400
913
150 153
510
170
112 P801
503
530
126
540 520
501
550 560
561
300
120
121
310
124
123
125
320
330
315 700
- 1 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6341V29001E CPT ASSY 2426GF080CA W/VM
120 6400VA0015A SPEAKER,GENERAL C151PX-373K14 8 OHM 15W
121 120-C76G SPEAKER,TWEETER C050TX-357K14 8 OHM 10/
123 6400VA0016A SPEAKER,GENERAL C050TX-346K14 8 OHM 15W
124 3550V00039C COVER,DOME
125 4810V00129A BRACKET,MAIN SPEAKER(RIGHT)
126 4810V00129B BRACKET,MAIN DOME(LEFT)
150 150-201S COIL,DEGAUSSING CU 29" 440T 102 OHM
153 6150Z-1040B DY,DC29SLSF1
170 170-844K CPT EARTH 29" 98T
300 3091V00162A CABINET ASSY
310 5020V00298A BUTTON,CONTROL
315 3581V00019A DOOR ASSY,MAIN
320 320-062H SPRING,COIL
330 5020V00299A BUTTON,POWER
400 3809V00141A BACK COVER ASSY
501 4810V00145A BRACKET,MAIN
503 3500V00018C BOARD,MAIN
510 6871VSM423B PWB ASSY,CPT
520 6871VMM380B PWB ASSY MAIN 29S30PT
6871VMM380D PWB ASSY MAIN 29S30NP
530 6871VDM084B PWB ASSY MAIN2
540 6871VSM509B PWB ASSY,TXT
550 6871VSM424B PWB ASSY,CONT
560 6871VSM425A PWB ASSY,PIP 2TUNER
561 343-A94A SUPPORTERPCB
700 0IGL120104D IC,CDS SENSOR MODULE(P1201-04)
913 332-229H SCREW ASSY HEXAGON HEAD(L:40,D:18)
943 1PTF0403116 SCREW,TAP D4.0 L16.0
P801 174-009V CORD,POWER(W/HOLD,HOUSING)L=400,4.0
174-224G POWER,CORD
