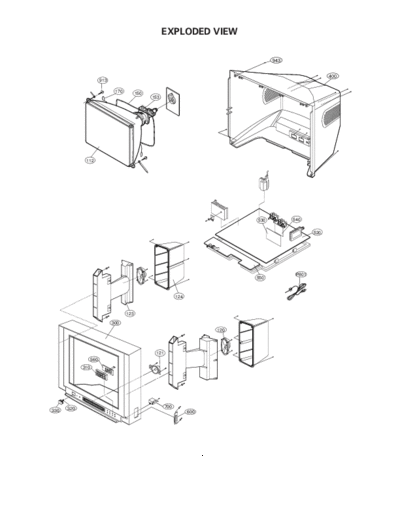

EXPLODED VIEW
943
400
913
170 150
153
112
530 540
520
P801
550
124
123
300
120
121
560
310
320 700
330 600
- 14 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6341V21003P CPT ASSY,2426GDB30AZ 21" FCD TINT NORTH
120 120-D38C SPEAKER,8 OHM 15/25W
121 120-C76G SPEAKER,TWEETER C050TX-357K14 8 OHM
123 4810V00267A BRACKET,SPK
124 4810V00124A BRACKET,COVER
150 150-D02X COIL,DEGAUSSING CU 21" 60T 12 OHM
153 6150Z-1221A DY,DC21SPFL2
170 170-A01P CPT EARTH,21" 64T 2LUG
300 3091V00282A CABINET ASSY
310 5020V00431A BUTTON,CONTROL
320 320-062E SPRING,KNOB
330 5020V00430A BUTTON,POWER
400 3809V00208A BACK COVER ASSY
501 4810V00266A BRACKET,MAIN
510 6871VSM727A PWB ASSY,CPT (007B) 21"STV5109 SET
6871VSM719C PWB ASSY,CPT (007B) 21"STV5109 CKD
520 6871VMM634A PWB ASSY,MAIN (007B) CT21Q92E
6871VMM634C PWB ASSY,MAIN (007B) CT21Q92PX
6871VMM634E PWB ASSY,MAIN (007B) CT21Q90E
6871VMM636A PWB ASSY,MAIN (007B) KCT21Q90PT
530 6871VSM625B PWB ASSY,VCD(007B) W/O PIP
6871VSM625D PWB ASSY,SUB(007B) W/PIP
540 6871VSM626B PWB ASSY,A/V AV-ST(007B) W/O(GAME
6871VSM626D PWB ASSY,A/V AV-ST(007B) W/O(GAME,CL)
550 6871VSM733A PWB ASSY,AC MC-007B CT-21Q92
560 6871VSM723A PWB ASSY,CONT MC007B 8-KEY
600 6871VSM624D PWB ASSY,A/V W/O S-JAC
6871VSM624E PWB ASSY,Q90-SIDE(PIP,CT)SET
6871VSM715C PWB ASSY,SIDE-AV 8 CKD
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-057B SCREW ASSY,HEXAGON HEAD
943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0
P801 174-009E CORD,POWER(W/HOLD,HOUSING,L=200,4.0
