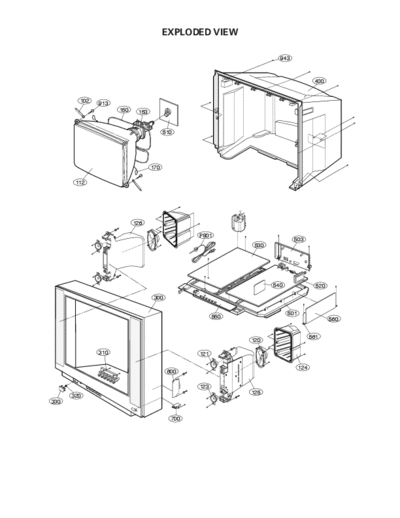

Image preview - the first page of the document



>> Download 072aev documenatation <<

Text preview - extract from the document

                                       EXPLODED VIEW

                                                                      943



                                                                                       400


        102   913
                    150    153


                                       510




                                 170

       112




                          126

                                                 P801
                                                                            503
                                                              530




                                                                    540                 520

                                  300

                                                                          501
                                                       550                                    560


                                                                                      561
                                                             120

              310                                121

                                                                                124
                                        600

                                                 123
                                                             125
      320
330


                                         700




                                               - 1 -
                                                         The components identified by mark          is
                                                         critical for safety.
EXPLODED VIEW PARTS LIST                                 Replace only with part number specified.



  LOCA. NO     PART NO                   DESCRIPTIONS

    112      6341V29006A   BARE CPT ASSY 2426GF239AP
             2426GF239AV   CPT SET A68QCU259X 52T7ND *KIOTA-KI,M.E.C
             2426GF239BQ   CPT SET A68QCU259X 66L7ND *LGEAK
             2426GF239BX   CPT SET A68QCU259X 66T7ND *DRAGON
    120      6400VA0015A   SPEAKER,GENERAL C151PX-373K14 8 OHM 15W
    121       120-C76G     SPEAKER,TWEETER C050TX-357K14 8 OHM 10/
    123      6400VA0016A   SPEAKER,GENERAL C050TX-346K14 8 OHM 15W
    124      3550V00039C   COVER,DOME
    125      4810V00129A   BRACKET,MAIN SPEAKER(RIGHT)
    126      4810V00129B   BRACKET,MAIN DOME(LEFT)
    150        150-201S    COIL,DEGAUSSING CU 29
