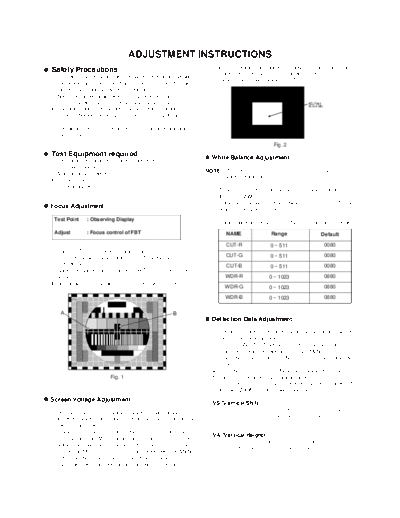

Image preview - the first page of the document
>> Download DC026AADJ documenatation <<
Text preview - extract from the document
ADJUSTMENT INSTRUCTIONS
3) Enter the adjustment mode to display the figure 2 on screen.
O Safety Precautions Adjust the screen voltage so that white box is 30.0!0.5(Ft-L)
1. It is safe to adjust after using insulating transformer between
by pressing screen volume of FBT.
the power supply line and chassis input to prevent the risk of
electric shock and protect the instrument.
2. Never disconnect leads while the TV receiver is on.
3. Don't short any portion of circuits while power is on. ADJ.Point
30.0!0.5(ft)
4. The adjustment must be done by the correct appliances.
5. Unless otherwise noted, set the line voltage to 230Vac!10%,
50Hz.
5. The adjustment of TVshould be performed after warming up
for 15 minutes.
Fig. 2
O Test Equipment required O White Balance Adjustment
1. RF signal generator (with pattern generator)
2. DC Power Supply
NOTE : This adjustment should be performed after screen
3. Multimeter (volt meter)
voltage adjustment.
4. Oscilloscope
5. Color analyzer
1) Tune the TV set to receive an 100% white pattern PAL-I
41Ch(631.25Mhz).
2) Adjustment the W/B so that LOw(4.5ft) is CUR-R,CUT-B and
O Focus Adjustment
High(35ft) is WDR-R,WDR-B.
Test Point : Observing Display
Color Coodinate : X=281!8,Y=288!8 (Temperate:10,000K)
Adjust : Focus control of FBT NAME Range Default
CUT-R 0 ~ 511 0080
1) Tune the TV set to receive a digital pattern.
2) Adjust the lower Focus volume of FBT for the best focus of CUT-G 0 ~ 511 0080
vertical line B. CUT-B 0 ~ 511 0080
3) Adjust the upper Focus volume of FBT for the best focus of
area A. WDR-R 0 ~ 1023 0880
4) Repeat above step 2) and 3) for the best overall focus.
WDR-G 0 ~ 1023 0880
WDR-B 0 ~ 1023 0880
A B
O Deflection Data Adjustment
1) Deflection Data Adjustment should be performed with the
remote controller for handset.
2) Press the IN-START button on remote control to enter SVC
mode,then select the DEFLECT in SVC-MENU.
3) Press the Channel UP/DOWN button to select adjustment
items.
4) Press the Volume UP/DOWN button to adjust the data.
Fig. 1 b 5) The TV set receives PAL-I Digital pattern.
6) TUne the TV set in PAL 16:9,50Hz,TV set is tuned PAL
4:3,14:9,ZOOM 1/2 mode automatically.
O Screen Voltage Adjustment
VS (Vertical Shift)
Adjust so that the vertical center line of a digital circle
1) Use the remote control for line to adjust screen voltage.
pattern is in accord with geometric vertical center of the
2) Enter the adjustment mode by using the ADJ button on line
CPT.
remote controller.
If you press the ADJ button twice times,it'll display the
VA (Vertical Height)
Red/Green/Blue/White pattern one by one.Exit the screen
Adjust so that the circle of a digital circle pattern may be
adjustment mode with using any button(Except ADJ button).
located within the effective screen of the CPT.
* Pressing MENU button on the front panel,press the MENU
button on the remote control more than 5 seconds to enter
the adjustment mode with using other remote control.
- 9 -
HS (Horizontal Shift) Menu Range 16:9 4:3 14:9 ZOOM
Adjust so that the horizontal center line of a digital circle
pattern is in accord with geometric horizontal center of the VS 1536 ~ 2304 2168
CPT.
VA 0~127 52
EW (East-West Width) HS 0~63 21
Adjust to that a digital circle pattern looks like exact circle.
EW 1024~3839 2415
ET (East-west Trapezium)
ET 1792~2303 2048
Adjust to make the width of top horizontal line same with it
of the bottom horizontal line. EP 1760~2112 1950
EP (East-west Parabolar) EC 1936~2384 2104
Adjust so that middle portion of the outermost left and right
BOW -256~255 -21
vertical line looks like parallel with vertical lines of the CPT.
ANGLE -256~255 16
EC (East-west Coner)
Adjust so that the vertical line at every 4 corners of the VL -128~127 -3
screen looks like parallel with the vertical lines of the CPT. SC -128~127 -19
BOW ES 1536~2815 2062
In line adjustment, not to change default value is basic.
HBST 0~511 240
ANGLE HBSO 0~511 344
In angle adjustment, adjust until inclination of left and right
screen should be precise. SCROL NC 35
VBST 0~511 305
VL (Vertical Linearity)
Adjust so that the boundary line between upper and lower half VBSO 0~511 20
is in accord with geometric horizontal center of the CPT.
PFGHB 204
SC (Vertical "S" Correction) PFGHE 332
Adjust so that all distance between each horizontal lines are
to be the same.
O SVC Data & CSM,SSM Data
VDP Scaler data setting(LINE SVC-SCALER)
Menu Description 28" LG FLAT 32" LG FLAT
SCMOD Scaler mode cont. 0
NEWLIN Start of next line 49
SCIN1 Scaler1(compress) 1024
SCIN2 Scaler2(expand) 1024
SCINC Nonlinear scaling 0
FFLIM Length in pixel 1080
SCW10 Scaler1 window control 0
SCW11 Scaler1 window control 0
SCW12 Scaler1 window control 0
SCW13 Scaler1 window control 0
SCW14 Scaler1 window control 0
SCW20 Scaler2 window control 0
SCW21 Scaler2 window control 0
SCW22 Scaler2 window control 0
SCW23 Scaler2 window control 0
SCW24 Scaler2 window control 0
- 10 -
VDP Picture setting data (LINE SVC-DDP CTRN) OPTION data(OPTION 1)
Menu Description 28" LG FLAT 32" LG FLAT Option Description 1 0
DTV DTV OPT DTV X
BRM Black Current 60
DVD DVD(Y,Cr,Cb)input ready DVD X
IBRM Black Current Mea. 200
SCART AV JACK Type SCART PHONE
WDRM White Current 400
28-IN INCH OPTION 28" Model
SCLTH BCL Thershold 127
CH+AU FREQ.Table China,Austrailia
BCLTM BCL Time Const. 5
TEXT TELETEXT O X
BCLGA BCL GAIN 7
TOP TOP O X
SVGA SVM GAIN 8
ACMS ACMS Austrailia
SVDEL SVM DELAY 7
SVD 1 SVM DELAY1 4
OPTION data(OPTION 2)
SVLIM SVM LIMIT 127
Option Description 1 0
EHT-EW Compensation(EW) 0
CMUTE Carrier mute
EHT-TM Compensation(Time) 15
A2 ST A2 Stereo check O X
LDLY L DELAY 0
MONO Forced Mono Forced Mono X
I/II SV Dual Brodcasting CH.memory Memory X
Sound PRE-SCALER setting data (LINE SVC-SOUND)
CURVE Volume Curve Rushed Normal
Menu Description Range DI model DT model
H-PH Head Phone O X
FP FM Prescaler 0~127 28
DOLBY Virtual Dolby O X
NP NICAM Prescaler 0~127 120
WOOF Woofer Amp. O x
SP SCART Prescaler 0~127 42
S1 VOL SCART1 Volume 0~127 74 OPTION data(OPTION 3)
S2 VOL SCART2 Volume 0~127 74 Option Description 1 0
M-STR 0~127 45 DGS DEgaussing circuit O X
M-HMC 0~127 25 TILT TILT O X
M-HP 2~30 9 TURBO Turbo Search O X
M-LP 5~30 11 T-P S Turbo Sound/Picture O X
M-LIM 0~255 -4 HOTEL HOTEL TV O X
AGCON Booster on level 0~255 130 AV SV AV CH.Last memory Memory X
NOISE Booster on level 0~255 200 SYS System select System option table
M-VOL MAX volume seting 0~100 step
PSM data
OPTION data(OPTION 4)
Mode STANDARD DYNAMIC MILD GAME USER
Option Description 1 0
CONTRAST 90 100 60 50 80
OSD OSD Language OSD Language option table
BRIGHT 50 55 60 60 60
T-LAN Teletext Language Teletext Language option table
COLOR 50 60 40 40 50
SHARPNESS 40 50 30 30 50
- 11 -
SYSTEM
0 BG/I/DK EU
1 BG/I/DK/L FRANCE
2 BG/I/DK/M
3 I only or B/G only UK
CODE Language Funciton
0 E Only English
OSD
1 English+EU English/German/French/Italian/Spanish/Dutch/Portuguess
LANG
2 English+Other EU English/Swedish/Norwegian/Danish/Finish//Hungarian/Czech/
Russian/Romanian/Polish
3 English+FARSI English/Farsi
4 English+Arab+URDU English/French/Arab+Urdu
0 West Europe English/French/Swedish/Czech/German/Spanish/Itallian
TELETEXT
1 East Europe Polish/Fench/Swedish/Czech/German/Slovenian/Italian/Romanian
LANG
2 Turkey English/French/Swedish/Turkish/German/Spanish/Itallian
3 Czecho/Hungary English/Hungarian/Serbian/Czech/German/Polish/Spanish/Itallian/
Romanian
4 Cyrillic 1
5 Cyrillic 2
6 Cyrillic 3
7 Turkey/Greek 1
8 Turkey/Greek 2
9 Turkey/Greek 3
10 Arab/France
11 Arab/English
12 Arab/Hebrew 1
13 Arab/Hebrew 2
14 Farsi/English
15 Farsi/France
16 Farsi all
- 12 -
