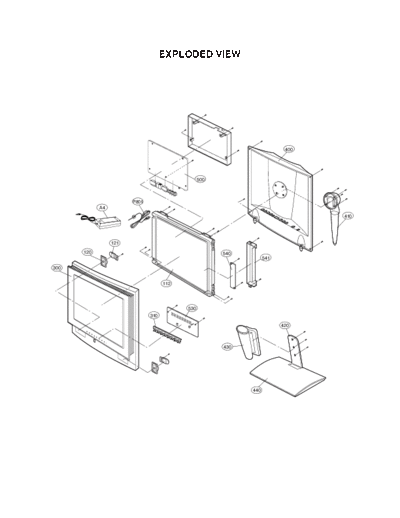

EXPLODED VIEW
400
500
P801
A4
410
121
120 540
541
300
112
530
310
420
430
440
- 16 -
EXPLODED VIEW PARTS LIST
No. PART NO. DESCRIPTION
112 6304FLP006A LCD,LC151X01-A3
120 6400VA0017A SPEAKER,GENERAL 8 OHM 1.0
121 4950V00010A HOLDER,SPK
300 3091V00226M CABINET ASSEMBLY LG FLATRO
310 5020V00360B BUTTON,CONTROL
400 3809V00275H BACK COVER ASSEMBLY(PHONE)
410 3550V00083K COVER METAL STAND ASSY
420 4950V00012A METAL STAND ASSY
430 4930V00103E HOLDER,STAND
440 3550V00081E COVER BASE
500 3141VMN803D CHASSIS ASSY,MAIN
530 6871VSMA56A PWB ASSY,CONT
540 6633VA0003G INVERTER ASSY,12VOLT
541 4814V00228A SHIELD CASE INVERTER ET-C 32X203 400
P801 6410VWH006A POWER CORD EB10A VOLEX VDE/SEMKO 1800MM H
- 17 -
