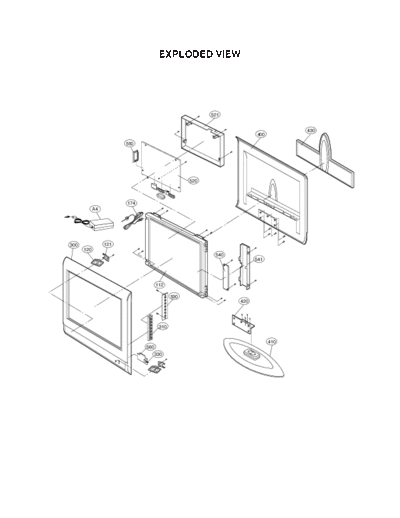

EXPLODED VIEW
521
430
400
550
520
174
A4
300 121
120
540
541
112
530
420
310
410
560
330
- 12 -
EXPLODED VIEW PARTS LIST
No. PART NO. DESCRIPTION
112 6304VT1511A LCD 151X3 B3AP 15.1" LGPHILIPS-LCD
120 6400VA0017A SPEAKER,GENERAL T401SX-095K14 8 OHM 1.0
121 4950V00067A METAL,SPEAKER HOLDER (L,R)
174 6410VEH003A POWER CORD
300 3091V00A15A CABINET ASSEMBLY
310 5020V00552B BUTTON
330 5020V00553A BUTTON,POWER
400 3809V00273G BACK COVER ASSEMBLY
410 4811V00015A BRACKET ASSEMBLY,MAIN
420 4950V00063B METAL,HINGE FIXER
430 3581V00033A DOOR ASSEMBLY
520 6871VMM600D PWB ASSY,MAIN RE-
6871VMM600H PWB ASSY,MAIN RL-
521 4950V00059A METAL,FRAME MAIN
530 6871VSMA12A PWB ASSY,CTRL ASSY
540 6633VA0003E INVERTER ASSY 12VVOLT DC/ACVO
541 4950V00060A METAL,SHIELD INVERTER
550 6871VSM660A PWB ASSY,MAIN TUNER RL-
6871VSM660B PWB ASSY,MAIN TUNER RE-
560 6871VSMA13A PWB ASSY,POWER ASSY
- 13 -
