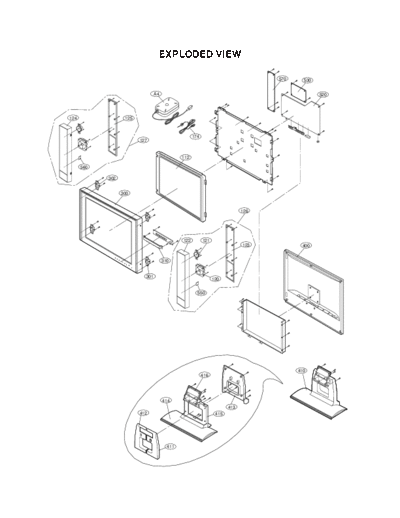

                                    EXPLODED VIEW

                                                                                 570     530


                               A4                                                              520




124                125



                                                  174
                         127


                                            112

      560

            302


                  300


                                                                           126




                                            122         121
                                                                           123          400


                                    310


                           301
                                                              120


                                                    550




                                                                                       410
                                                        416




                                    414
                                                                     413
                         412                                   415




                                      411




                                                  - 12 -
                    EXPLODED VIEW PARTS LIST

No.    PART NO.                                   DESCRIPTION

112   6304VT2011A          LCD,TFLC201V1-A1 20.1" LGPHILIPS-LCD

120   6400VA0030A          SPEAKER,GENERAL 4 5/7W 83.5

121   6400VG0005A          SPEAKER,TWEETER 4 OHM 10/15

122   3110V00122A          CASE SPK ASSY(R)

123   3550V00156C          COVER,SPK(R)

124   3110V00121A          CASE SPK ASSY(L)

125   3550V00156D          COVER,SPK(L)

126   6401VF0053B          SPEAKER ASSY,DOME(R)

127   6401VF0052B          SPEAKER ASSY,DOME(L)

174   6410VEH003A          POWER CORD,M2511A-001 VOLEX

300   3091V00313E          CABINET ASSY,LG FLATRON

301   3650V00007A          HANDLE ASSY SPK FIX

302   3650V00007B          HANDLE(LEFT) ASSY SPK FIX

310   5020V00465A          BUTTON,CONTROL

400   3809V00232F          BACK COVER ASSY,LT-20A20(DVD)

410   4811V00011F          BRACKET ASSY,STAND ASSY

411   4810V00331A          BRACKET,STAND FRONT (R)

412   4810V00315A          BRACKET,STAND FRONT(L)

413   4810V00348E          BRACKET ASSY STAND REAR LT-20A20

414   4950V00044A          METAL,STAND BASE SCP-1

415   4950V00049A          METAL,LN-20A2, STAND .. METAL ASSY

416   4950V00037A          METAL,SHFT GUIDE SCP-1

520   6871VMM644F          PWB ASSY,MAIN MF002A

530   6871VSM814E          PWB ASSY,MF002A MX, LE/LT/LL-20A20

550   6871VSM840A          PWB ASSY,MF002A RIGHT SPEAKER

560   6871VSM813A          PWB ASSY,MF002A LEFT SPEAKER

570   6633VA0003D          INVERTER ASSY 15VOLT KUBNKM022AVOLT 850VOLT
