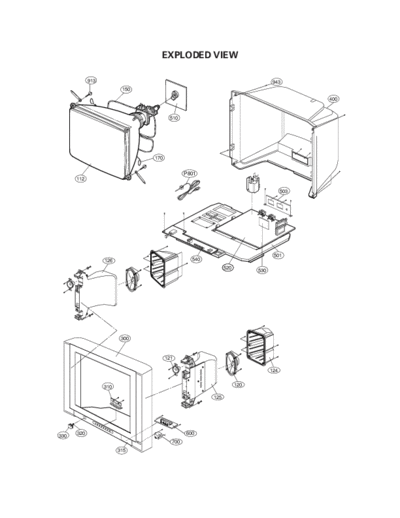

Image preview - the first page of the document
>> Download 118Eev documenatation <<
Text preview - extract from the document
EXPLODED VIEW
913 943
150
400
510
170
P801
112
503
501
126 540
520
530
300
121
124
310 120
125
320 600
330
700
315
- 22 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6341V29009A CPT ASSEMBLY A68QCU759X ,5006C
6341V29009B CPT ASSEMBLY A68QCU759X LGPD DY
6341V29006D CPT ASSEMBLY A68QCP893X001
6335V29014A CPT ASSEMBLY A68QCU759X 66L7ND
6335V29014C CPT ASSEMBLY A68QCU759X 66M7ND
6335V29014G CPT ASSEMBLY A68QCU759X 66R7ND
120 120-D38C SPEAKER,MID-RANGE 8 OHM 15/25W 87 128*77
120-C77G SPEAKER,C122P02K1459
121 6400VG0002A SPEAKER,TWEETER T0520101(C76G) 8 OHM
124 3550V00068A COVER,DOME PS 60HR
125 4810V00165A BRACKET,DOME(R) PS 60HR
126 4810V00165B BRACKET,DOME(L) PS 60HR
150 6140VC2005F COIL,DEGAUSSING 29 FLAT ASSY (W)
170 170-844K CPT EARTH 29" 98T 4LUG
300 3091V00316X CABINET ASSEMBLY LG
3091V00316N CABINET ASSEMBLY GS
310 5020V00480A BUTTON 6KEY
315 3580V00058B FRONT,DOOR
320 320-062E SPRING,KNOB
330 5020V00479A BUTTON
400 3809V00234A BACK COVER ASSY
3809V00234B BACK COVER ASSY
3809V00234F BACK COVER ASSY
501 4810V00233B BRACKET,MAIN FRAME
503 3500V00022A BOARD,A/V 2 PHONE
3500V00022B BOARD,A/V
510 6871VSMB26A PWB ASSY,CPT 022A CPT+VM LG
6871VSMB26C PWB ASSY,CPT 022A CPT+VM S/S
520 6871VMMB72A PWB ASSY,MAIN 022A 29FA33RP
6871VMMB72B PWB ASSY,MAIN 022A 29FA33RT
6871VMMB72C PWB ASSY,MAIN 022A 29FA33RQ
6871VMMB89A PWB ASSY,MAIN 022A 29FA33RT
6871VMMB89B PWB ASSY,MAIN 022A 29FA33VE
6871VMMB89D PWB ASSY,MAIN 022A 29FA33VQ
530 6871VSMB25A PWB ASSY,PIP 022A
540 6871VSMB27A PWB ASSY,CONT 022A CONT FA30/Q26
600 6871VSMB28A PWB ASSY,SIDE AV FA30/Q26
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-229B SCREW ASSY,HEXAGON HEAD SPECIAL
943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0 MSWR3/FZB
P801 174-009V POWER CORD(W/HOLD,HOUSING)L=400,4.0
174-222S POWER CORD SAA L=2200MM 219A
- 23 -
