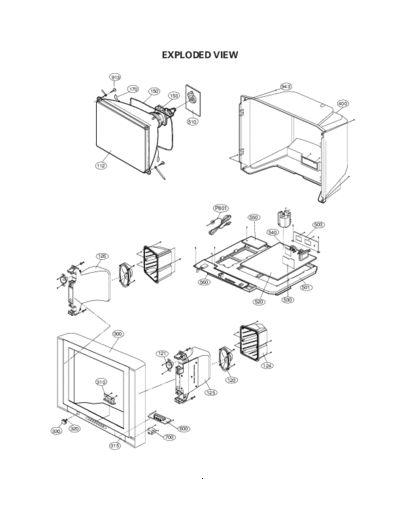

Image preview - the first page of the document
>> Download 077WEV documenatation <<
Text preview - extract from the document
EXPLODED VIEW
913
170 943
150
153
400
510
112
P801
550
503
540
126
560
501
520 530
300
121
124
310 120
125
320 600
330
700
315
- 24 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6341V29006A CPT ASSY,2426GF239AP
2426GF239BW CPT SET,A68QCU259X 66R7ND * S&E
2426GF239BU CPT SET,A68QCU259X 66P7ND * LGESV
120 120-D38C SPEAKER,MID-RANGE 8 OHM 15/25W 87 128*77
121 6400VG0002A SPEAKER,TWEETER 8 OHM 10
124 3550V00068A COVER,DOME PS 60HR
125 4810V00165A BRACKET,DOME(R) PS 60HR
126 4810V00165B BRACKET,DOME(L) PS 60HR
150 6140VC2005F COIL,DEGAUSSING 29 FLAT ASSY
153 6150Z-1240A DY,DC29SLFL1
170 170-844K CPT EARTH 29" 98T 4LUG
300 3091V00316B CABINET ASSY LG
3091V00316N CABINET ASSY ESSALEM
310 5020V00480A BUTTON,CONTROL
315 3580V00058B DOOR,FRONT DOOR
320 320-062E SPRING,KNOB
330 5020V00479A BUTTON,POWER
400 3809V00234C BACK COVER ASSY
501 4810V00233B BRACKET,MAIN FRAME
503 3500V00022E BOARD,A/V 1S/1P(9)
3500V00022F BOARD,A/V 1P(6)/1P(9)
510 6871VSM590A PWB ASSY,CPT 007A LG FLAT 29" STV5109
520 6871VMM836A PWB ASSY,MAIN 29FA30RU
6871VMM836B PWB ASSY,MAIN 29FA30RU
6871VMM836C PWB ASSY,MAIN 29FA30RX
6871VMM836D PWB ASSY,MAIN 29FA30V
530 6871VSMA66A PWB ASSY,VCD 007C W/(PIP,SVHS,DVD,VM)
6871VSMA77A PWB ASSY,VCD 007C W/(DVD,SVHS
540 6871VSM589A PWB ASSY,RF ST. W/ H_PHONE
6871VSM589B PWB ASSY,AV ST. W/ H_PHONE
550 6871VSM605A PWB ASSY,HV 007A D-FOCUS
560 6871VSMA05A PWB ASSY,CONT(TACK S/W)
600 6871VSM873C PWB ASSY,SIDE A/V
700 0IGL120104A IC,CDS SENSOR MODULE(P1201-04)
913 332-229A SCREW ASSY,HEXAGON HEAD SPECIAL
943 1PTF0403116 SCREW,TAP TITE(P)D4.0 L16.0
P801 174-009V POWER CORD(W/HOLD,HOUSING)L=400,4.0
174-219A POWER CORD FOR SAA
- 25 -
