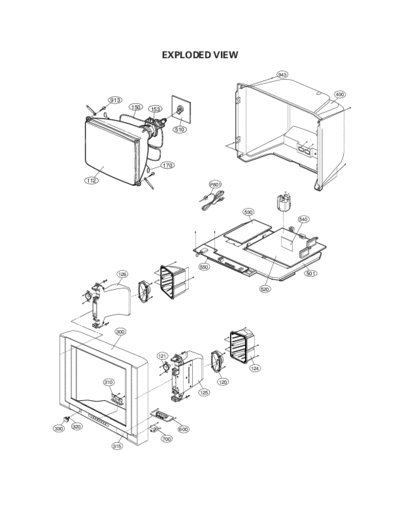

                                           EXPLODED VIEW

                                                                                         943



                                                                                                       400
                    913
                               150   153


                                                 510




                                           170

            112
                                                                P801




                                                                         530
                                                                                               540




                                                                                   540


                                                          550
                         126                                                                     501

                                                                                 520




                         300




                                       121

                                                                           124

                  310                                              120

                                                          125




330   320
                                                  600
                                           700
                        315




                                                        - 28 -
                                                           The components identified by mark          is
                                                           critical for safety.
EXPLODED VIEW PARTS LIST                                   Replace only with part number specified.



  LOCA. NO     PART NO                    DESCRIPTIONS

    112      6341V29005A   CPT ASSY 2426GF239AT 100HZ DY
    120      120-D38C      SPEAKER,MID-RANGE 8 OHM 15/25W
    121      6400VG0002A   SPEAKER,TWEETER T0520101(C76G) 8 OHM
    124      3550V00068A   COVER,DOME PS
    125      4810V00165A   BRACKET,DOME(R)
    126      4810V00165B   BRACKET,DOME(L)
    150      150-201S      COIL,DEGAUSSING CU 29" 440TURN 102 OHM
    153      6150Z-1340F   DY,DC29SLFL2
    170      170-844K      CPT EARTH 29" 98T 4LUG
    300      3091V00316B   CABINET ASSY
    310      5020V00480A   BUTTON,CONTROL
    315      3580V00058B   DOOR,FRONT DOOR
    320      320-062E      SPRING,KNOB
    330      5020V00479A   BUTTON,POWER
    400      3809V00234E   BACK COVER ASSY
             3809V00234A   BACK COVER ASSY
    501      4810V00379C   BRACKET,MAIN
    503      3500V00022E   BOARD,A/V 1S/1P(9)
             3500V00022F   BOARD,A/V 1P/1P
    510      6871VSM889A   PWB ASSY,LG29 CPT,SET
    520      6871VMM759B   PWB ASSY,MAIN(017A) RT-29FA31X,SET(PH-PH)
             6871VMM759C   PWB ASSY,MAIN(017A) RT-29FA31PX,SET
             6871VMM759E   PWB ASSY,MAIN(017A) RT-29FA31PX,SET
             6871VMM759N   PWB ASSY,MAIN(017A) RT-29FA31X,SET(SC-PH)
             6871VMM759G   PWB ASSY,MAIN(017A) RT-29FA31PX,SET LGEAP
    530      6871VPM063B   PWB ASSY,SMPS (017A) NEU,WIDE,LG29,SET
             6871VPM063F   PWB ASSY,SMPS (017A) NEU,NARROW
    540      6871VSM913C   PWB ASSY,(017A) 100HZ,NEU,W/PIP
    550      6871VSM866G   PWB ASSY,(017A)-FA30,WIDE
             6871VSM866E   PWB ASSY,(017A)-FA30,NARROW
    600      6871VSM922A   PWB ASSY,(017A) SIDE,FA30,SET
    700      0IGL120104A   IC,CDS SENSOR MODULE(P1201-04)
    913      332-229A      SCREW ASSY,HEXAGON HEAD SPECIAL
    943      1PTF0403116   SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
    P801     174-322D      CORD,POWER W/FILTER L=300(179B)VDE
             174-219C      CORD,POWER LGEAP
             6410VBH004A   CORD,POWER




                                   - 29 -
