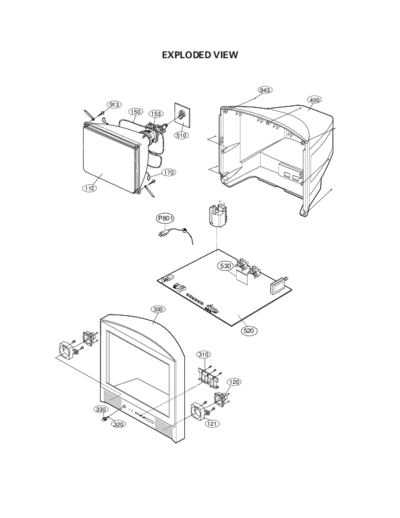

                               EXPLODED VIEW


                                                                    943
                                                                          400
            913
                   150   153


                                     510




                               170

112




                           P801




                                                      530




                         300


                                                              520


                                             310



                                                        120



      330

             320                                121




                                           - 22 -
                                                           The components identified by mark          is
                                                           critical for safety.
EXPLODED VIEW PARTS LIST                                   Replace only with part number specified.



  LOCA. NO     PART NO                   DESCRIPTIONS

    104      4980V00432A   SUPPORTER,PCB HIPS 407AF
    112      6341V29009A   CPT ASSY A68QCU759X ,5006C DY S-FOCUS
             6341V29009B   CPT ASSY A68QCU759X LGPD DY S-FOCUS
             6335V29014A   CPT ASSY A68QCU759X 66L7ND
    120      6400VA0031A   SPEAKER,GENERAL C080P22K1450 ESTEC 8 OHM 10/15
    121      4810V00573A   BRACKET,SPEKER
    150      6140VC2001R   COIL,DEGAUSSING 29 FLAT (W) SELLA TECH 15 OHM
             6140VC2005F   COIL,DEGAUSSING 29 FLAT (W) SELLA TECH
    153      6150V-5006C   DY 6150Z-1247G DC29SFALJ 29" LPD
             6150V-5006D   DY 6150Z-1247G DC29SFL3 29"
    170        170-844K    CPT EARTH 29" 98T 4LUG LEAD SET
    300      3091V00438G   CABINET ASSY SET STEREO MC022A .
             3091V00438B   CABINET ASSY 40AF STEREO LGEAP
             3091V00438H   CABINET ASSY C/SKD STEREO MC022A .
    310      5020V00652B   BUTTON,CONTROL
    320        320-062E    SPRING,KNOB
    330      5020V00653B   BUTTON,POWER
    400      3809V00298E   BACK COVER ASSY 3850VC0002A 2PHONE
             3809V00298B   BACK COVER ASSY 2PHONE 40AF LGEAP
             3809V00298F   BACK COVER ASSY C/SKD 2PHONE
    510      6871VSMB26C   PWB ASSY,CPT 022A (CPT/VM) 29" LG
    520      6871VMMB72F   PWB ASSY,MAIN 022A RT-29FB30VX
             6871VMMB89N   PWB ASSY,MAIN 022A RT-29FB30V
             6871VMMB72H   PWB ASSY,MAIN 022A RT-29FB30R
             6871VMMB72J   PWB ASSY,MAIN 022A RT-29FB30VX LGEAP
    913        332-229H    SCREW ASSY HEXAGON HEAD (L:40,D:18)
    943      1PTF0403116   SCREW,TAP TITE(P) D4.0 L16.0 MSWR3/FZB
    P801       174-009V    POWER CORD(W/HOLD,HOUSING)L=400,4.0
               174-222S    POWER CORD ASSY SAA L=2200MM 219A




                                  - 23 -
