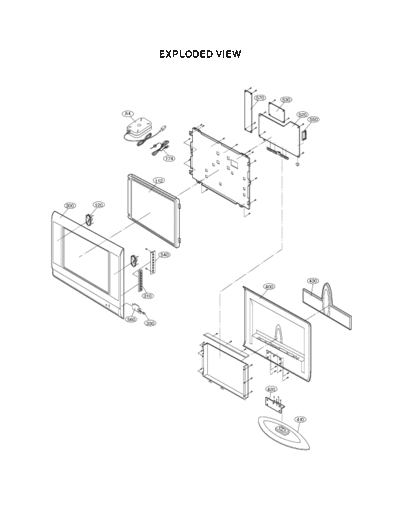

                         EXPLODED VIEW



                                             570         530

            A4                                                 520
                                                                     550




                              174



                        112




300   120




                          540




                                                                     430
                                                   400

                  310




            560
                  330




                                                   420




                                                               410




                                    - 20 -
                    EXPLODED VIEW PARTS LIST

No.    PART NO.                                  DESCRIPTION

112   6304VT2011A          LCD LC201V1-A1 20.1" LGPHILIPS-LCD

120    120-D44E            SPEAKER,4 OHM 3/5W 80DB

174   6410VWH006A          POWER CORD EB10A VDE/SEMKO 1800MM H

300   3091V00A20D          CABINET ASSEMBLY

310   5020V00552C          BUTTON

330   5020V00553A          BUTTON,POWER

400   3809V00A10M          BACK COVER ASSY

410   4811V00019A          BRACKET ASSY,ABS STAND

420   4950V00081B          METAL,HINGE FIXER SUS304

430   3550V00202A          COVER,A/V ABS

520   6871VMM644J          PWB ASSY,MAIN

530   6871VSM814E          PWB ASSY,MF002A MX, LE/LT/LL-

540   6871VSMA74A          PWB ASSY,MF-002A CTL ASSY RE/RL/RN-

550   6871VSM812F          PWB ASSY,MF002A TUNER

560   6871VSMA75A          PWB ASSY,MF-002A POWER ASSY RE/RL/R

570   6633VA0003D          INVERTER ASSEMBLY,15VOLT KUBNKM022AVOLT 850VOLT




                                 - 21 -
