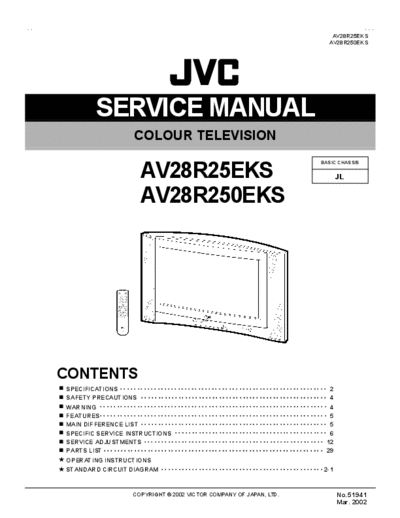

                                                                AV28 R25EKS
                                                               AV28 R250EKS




       SERVICE MANUAL
            COLOUR TELEVISION

             AV28R25EKS
                                                             BASIC CHASSIS


                                                                  JL


             AV28R250EKS




CONTENTS
!   SPECIFICATIONS   2
!   SAFETY PRECAUTIONS  4
!   WARNING    4
!   FEATURES   5

!   MAIN DIFFERENCE LIST  5

!
    SPECIFIC SERVICE INSTRUCTIONS  6
!   SERVICE ADJUSTMENTS   12
!   PARTS LIST   29

    OPERATING INSTRUCTIONS

    STANDARD CIRCUIT DIAGRAM  2-1



1          CO PYRIGHT
