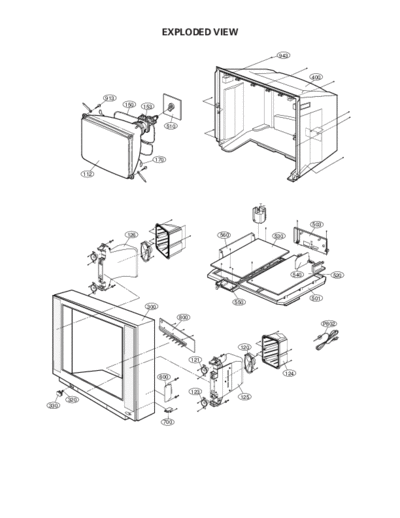

Image preview - the first page of the document
>> Download 064bev documenatation <<
Text preview - extract from the document
EXPLODED VIEW
943
400
913
150 153
510
170
112
503
126 560 530
540 520
501
550
300
800
P802
120
121
124
600
123
125
320
330
700
- 1 -
The components identified by mark is
critical for safety.
EXPLODED VIEW PARTS LIST Replace only with part number specified.
LOCA. NO PART NO DESCRIPTIONS
112 6341V29005A BARE CPT ASSY,2426GF239AT 100HZ DY
120 6400VA0015A SPEAKER,C151PX-373K14 8 OHM 15W
121 120-C76G SPEAKER,TWEETER C050TX-357K14 8 OHM
123 6400VA0016A SPEAKER,C050TX-346K14 8 OHM 15W
124 3550V00039C COVER,DOME
125 4810V00129A BRACKET,MAIN SPEAKER(RIGHT)
126 4810V00129B BRACKET,MAIN DOME(LEFT)
150 150-201S COIL,DEGAUSSING CU 29" 440TURN 102 OHM
153 6150Z-1340A DY,DC29SLFL2
170 170-844K CPT EARTH,29" 98T
300 3091V00173G CABINET ASSY
320 320-070G SPRING,COIL
330 5020V00337A BUTTON,POWER
400 3809V00127K BACK COVER ASSY
501 4810V00139D BRACKET,MAIN
503 3500V00017B BOARD,MAIN(2PHONE)
510 6871VSM371A PWB ASSY,CPT
520 6871VMM311C PWB ASSY MAIN (118,19,66.128) UAE
530 6871VDM073A PWB ASSY MAIN2 MC993A E/S INITIAL
540 6871VSM313A PWB ASSY,DIGIT MC993A 100HZ
550 6871VSM372A PWB ASSY,CONT MC993A POWER
560 6871VSM437A PWB ASSY,SIDE
600 6871VSM373A PWB ASSY,A/V MC993A SIDE-AV
700 0IGL120104D IC,G-LINK CDS SENSOR MODULE
800 6871VSM404A PWB ASSY,BUTON MC993A TOUCH
913 332-229H SCREW ASSY HEXAGON HEAD
943 1PTF0403116 SCREW,TAP TITE D4.0 L16.0
P802 174-009V CORD,POWER(W/HOLD,HOUSING)L=400
- 2 -
