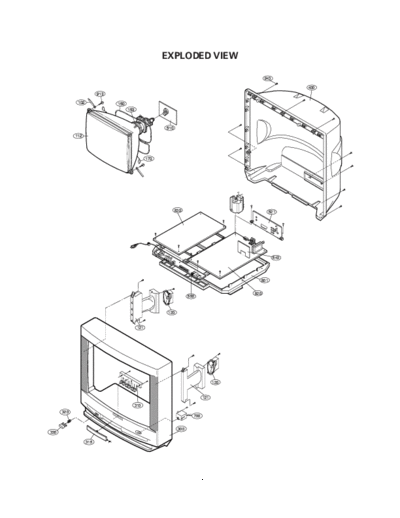

                                                       EXPLODED VIEW

                                                                                               943

                                                                                                           400
                         913

             102               150
                                     153



                                                       510
            112




                                                 170




                                                             530                                    521




                                                                                                     540




                                                                                              501


                                                                                        520
                                                                    550



                                                        120


                                           121




                                                                                  120


                                                                            121

                                       310
      320
                                                                      700


                                                              300
330

                   315




                                                                     - 14 -
                                                                The components identified by shading and
                                                                mark    are critical for safety.
EXPLODED VIEW PARTS LIST                                        Replace only with part number specified.



  LOCA. NO     PART NO                     DESCRIPTIONS

   102       341-919A      HOLDER,D-COIL

   112       112-D29H      CPT A68AGA25X02(+0.47G,SVM,RCA)

             112-D29K      CPT A68AGA25X402(-0.12G,SVM,RCA)

             112-D29J      CPT A68AGA25X202(+0.24G,SVM,RCA)

             112-D29L      CPT A68AGA25X502(-0.5G,SVM,RCA) *RANKINE

   120       120-D38C      SPEAKER,MID-RANGE 8 OHM 15/25W 87 128*77

   121       4810V00052A   BRACKET,DOME FRONT

   150       150-D05D      COIL,DEGAUSSING,CU 29
