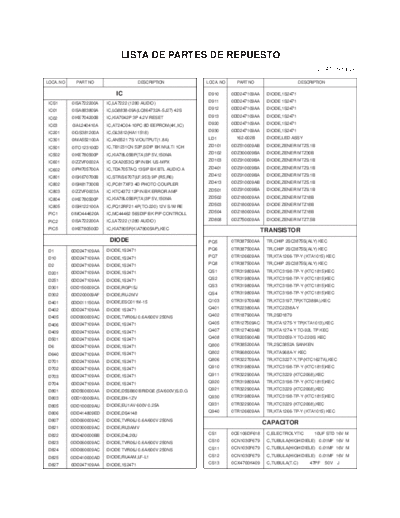

Image preview - the first page of the document
>> Download 034jrpl documenatation <<
Text preview - extract from the document
LISTA DE PARTES DE REPUESTO
RUN DATE:980626
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
IC D910 0DD247109AA DIODE,1S2471
ICS1 0ISA722200A IC,LA7222 (1280 AUDIO) D911 0DD247109AA DIODE 1S2471
IC01 0ISA883809A IC,LG8838-09A(LC864732A-5J27) 42S D912 0DD247109AA DIODE,1S2471
IC02 0IKE704200B IC,KIA7042P 3P 4.2V RESET D913 0DD247109AA DIODE,1S2471
IC03 0IAL240410A IC,AT24C04-10PC 8D EEPROM(4K,IIC) D920 0DD247109AA DIODE,1S2471
IC201 0IGS381200A IC,GL3812(HA11518) D930 0DD247109AA DIODE,1S2471
IC301 0IMA552100A IC,AN5521 7S V/OUTPUT(1.8A) LD1 162-002B DIODE,LED ASSY
IC501 0ITO123100D IC,TB1231CN 52P,SDIP BK MULTI 1CH ZD101 0DZ510009AB DIODE,ZENER MTZ5.1B
IC502 0IKE780500P IC,KIA78L05BP(TA)3P 5V,150MA ZD102 0DZ300009BA DIODE,ZENER MTZ30B
IC601 0IZZVF0002A IC CXA2053Q 9PIN BK US-MPX ZD103 0DZ910009BA DIODE,ZENER MTZ9.1B
IC602 0IPH705700A IC,TDA7057AQ 13SIP BK BTL AUDIO A ZD401 0DZ910009BA DIODE,ZENER MTZ9.1B
IC801 0ISK670700B IC,STR/S6707(LF.953) 9P (R5,R6) ZD412 0DZ910009BA DIODE,ZENER MTZ9.1B
IC802 0ISH817300B IC,PC817XF3 4D PHOTO COUPLER ZD413 0DZ510009AB DIODE,ZENER MTZ5.1B
IC803 0IZZVF0003A IC KTC4372 12PIN BK ERROR AMP ZD501 0DZ910009BA DIODE,ZENER MTZ9.1B
IC804 0IKE780500P IC,KIA78L05BP(TA)3P 5V,150MA ZD502 0DZ180009AA DIODE,ZENER MTZ18B
IC805 0ISH122100A IC,PQ12RF21 4P(TO-220) 12V S/W RE ZD503 0DZ180009AA DIODE ZENER MTZ18B
PIC1 0IMO444620A IC,MC44462 56SDIP BK PIP CONTROLL ZD504 0DZ180009AA DIODE,ZENER MTZ18B
PIC2 0ISA722200A IC,LA7222 (1280 AUDIO) ZD808 0DZ750009AA DIODE,ZENER MTZ7.5B
PIC5 0IKE780500D IC,KIA7805P(KIA78005AP),KEC
TRANSISTOR
DIODE PQ5 0TR387500AA TR,CHIP 2SC3875S(ALY) KEC
D1 0DD247109AA DIODE,1S2471 PQ6 0TR387500AA TR,CHIP 2SC3875S(ALY) KEC
D10 0DD247109AA DIODE,1S2471 PQ7 0TR126609AA TR,KTA1266-TP-Y (KTA1015) KEC
D2 0DD247109AA DIODE,1S2471 PQ8 0TR387500AA TR,CHIP 2SC3875S(ALY) KEC
D201 0DD247109AA DIODE,1S2471 QS1 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D251 0DD247109AA DIODE,1S2471 QS2 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D301 0DD150009CA DIODE,RGP15J QS3 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D302 0DD200009AF DIODE,RU-2MV QS4 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D401 0DD011150AA DIODE,ESC011M-15 Q103 0TR319709AB TR,KTC3197,TP(KTC388A),KEC
D402 0DD247109AA DIODE 1S2471 Q401 0TR223800AA TR,KTC2238A-Y
D405 0DD060009AC DIODE,TVR06J 0.6A/600V 250NS Q402 0TR187900AA TR,2SD1879
D406 0DD247109AA DIODE,1S2471 Q405 0TR127509AC TR,KTA1275-Y TP(KTA1013),KEC
D409 0DD247109AA DIODE,1S2471 Q407 0TR127409AB TR,KTA1274-Y TO-92L TP KEC
D501 0DD247109AA DIODE 1S2471 Q408 0TR205900AB TR,KTD2059-Y TO-220IS KEC
D6 0DD247109AA DIODE,1S2471 Q800 0TR385200AA TR,2SC3852A SANKEN
D640 0DD247109AA DIODE,1S2471 Q802 0TR968000AA TR,KTA968A-Y KEC
D701 0DD247109AA DIODE,1S2471 Q806 0TR322709AA TR,KTC3227-Y,TP(KTC1627A),KEC
D702 0DD247109AA DIODE,1S2471 Q910 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D703 0DD247109AA DIODE,1S2471 Q911 0TR322900AA TR,KTC3229 (KTC2068),KEC
D704 0DD247109AA DIODE,1S2471 Q920 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D801 0DD560000AA DIODE,D5SB60 BRIDGE (5A/600V)S.D.G Q921 0TR322900AA TR,KTC3229 (KTC2068),KEC
D803 0DD100009AL DIODE,EH-1ZV Q930 0TR319809AA TR,KTC3198-TP-Y (KTC1815)KEC
D805 0DD100009AU DIODE,EU1AV 600V 0.25A Q931 0TR322900AA TR,KTC3229 (KTC2068),KEC
D806 0DD414809ED DIODE,DS4148 Q940 0TR126609AA TR,KTA1266-TP-Y (KTA1015) KEC
D807 0DD060009AC DIODE,TVR06J 0.6A/600V 250NS
CAPACITOR
D821 0DD300009AC DIODE,RU3AMV
D822 0DD420000BB DIODE,D4L20U CS1 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
D823 0DD060009AC DIODE,TVR06J 0.6A/600V 250NS CS10 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
D824 0DD060009AC DIODE TVR06J 0.6A/600V 250NS CS11 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
D825 0DD410000AD DIODE,RU4AM,LF-L1 CS12 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
D827 0DD247109AA DIODE,1S2471 CS13 0CX4700K409 C,TUBULA(T.C) 47PF 50V J
- 11 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
CS15 0CX4700K409 C,TUBULA(T.C) 47PF 50V J C215 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
CS16 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C216 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
CS2 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M C218 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
CS3 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C219 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
CS4 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C221 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
CS5 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M C222 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
CS6 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C223 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
CS7 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C225 0CE108DF618 C,ELECTROLYTIC 1000UF STD 16V M
CS8 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C226 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
CS9 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C227 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M
C1 0CX1500K409 C,TUBULA(T.C) 15PF 50V J C228 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C10 0CE475DK618 C,ELECTROLYTIC 4.7UF STD 50V M C229 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C100 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C230 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C101 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C3 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C102 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C301 0CN1020K519 C,TUBULA(HIGH DIELE) 1000PF 50V K
C103 0CE107DD618 C,ELECTROLYTIC 100UF STD 10V M C302 0CE228DJ650 C,ELECTROLYTIC 2200UF STD 35V M
C104 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C303 0CQ5642K439 C,POLYESTER(MYLAR) 0.5600UF S 50V J
C105 0CE108DF618 C,ELECTROLYTIC 1000UF STD 16V M C304 0CQ3342K439 C,POLYESTER(MYLAR) 0.33UF S 50V J
C106 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C305 0CE108DJ618 C,ELECTROLYTIC 1000UF STD 35V M
C107 0CN1020K519 C,TUBULA(HIGH DIELE) 1000PF 50V K C306 0CQ3331N509 C,POLYESTER(MYLAR) 0.033U 100V K
C108 0CE475DK618 C,ELECTROLYTIC 4.7UF STD 50V M C307 0CE337DK618 C,ELECTROLYTIC 330UF STD 50V M
C109 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M C308 0CQ3321N509 C,POLYESTER(MYLAR) 0.0033U 100V K
C11 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C309 0CK5610W515 C,CERAMIC(HIGH DIELE) 560PF 500V K
C110 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C310 0CQ1041N509 C,POLYESTER(MYLAR) 0.1MF 100V L
C112 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C311 0CK56101515 C,CERAMIC(HIGH DIELE) 560P 1KV K
C113 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C312 0CE107DK618 C,ELECTROLYTIC 100UF STD 50V M
C114 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C313 0CQ1052K439 C,POLYESTER(MYLAR) 1UF S 50V J
C116 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C314 0CQ4742K439 C,POLYESTER(MYLAR) 0.47UF S 50V J
C117 0CK1030K945 C,CERAMIC(HIGH DIELE) 0.01MF 50V Z C315 0CQ1041N509 C,POLYESTER(MYLAR) 0.1MF 100V L
C118 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M C4 0CE477DD618 C,ELECTROLYTIC 470UF STD 10V M
C119 0CE106DK618 C,ELECTROLYTIC 10UF STD 50V M C401 0CQ3921N409 C,POLYESTER(MYLAR) 0.0039U 100V J
C12 0CN4710K519 C,TUBULA(HIGH DIELE) 470PF 50V K C402 0CE684DK618 C,ELECTROLYTIC 0.68UF STD 50V M
C121 0CE106DK618 C,ELECTROLYTIC 10UF STD 50V M C403 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C122 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C404 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M
C123 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C405 0CK2220W515 C,CERAMIC(HIGH DIELE) 2200PF 500V K
C124 0CE474DK618 C,ELECTROLYTIC 0.47UF STD 50V M C406 0CE225DP618 C,ELECTROLYTIC 2.2UF STD 160V M
C125 0CN1020K519 C,TUBULA(HIGH DIELE) 1000PF 50V K C407 0CN1020K519 C,TUBULA(HIGH DIELE) 1000PF 50V K
C127 0CE337DF618 C,ELECTROLYTIC 330UF STD 16V M C408 181-091Y CAPACITOR 2KV R 681K TP7.5
C13 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C409 0CK2220W515 C,CERAMIC(HIGH DIELE) 2200PF 500V K
C14 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M C411 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C15 0CN1210K519 C,TUBULA(HIGH DIELE) 120P 50V K C412 0CQ3931N509 C,POLYESTER(MYLAR) 0.039UF 100V K
C150 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C413 181-038K C,POLYPROPYLENE 0.56UF D 250V J
C16 0CE475DK618 C,ELECTROLYTIC 4.7UF STD 50V M C414 181-014G C,MPP 1600V 0.0073UF J
C161 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C416 181-091X CAPACITOR 2KV R 561K TP7.5
C162 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C418 181-014F C,MPP 1600V 0.0068UF J
C164 0CE474DK618 C,ELECTROLYTIC 0.47UF STD 50V M C419 181-009V C,PP 200V 0.047UF K
C165 0CX4700K409 C,TUBULA(T.C) 47PF 50V J C420 0CE226DK618 C,ELECTROLYTIC 22UF STD 50V M
C166 0CX4700K409 C,TUBULA(T.C) 47PF 50V J C422 0CE106DR618 C,ELECTROLYTIC 10UF STD 250V M
C18 0CE225DK618 C,ELECTROLYTIC 2.2UF STD 50V M C425 0CE107DK618 C,ELECTROLYTIC 100UF STD 50V M
C2 0CX1500K409 C,TUBULA(T.C) 15PF 50V J C426 0CQ1842K439 C,POLYESTER(MYLAR) 0.1800UF S 50V J
C209 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C427 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J
C210 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C428 0CE477DD618 C,ELECTROLYTIC 470UF STD 10V M
C211 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C429 0CE334DK618 C,ELECTROLYTIC 0.33UF STD 50V M
C212 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M C430 0CE476DJ618 C,ELECTROLYTIC 47UF STD 35V M
C213 0CE337DD618 C,ELECTROLYTIC 330UF STD 10V M C432 181-009R C,PP 200V 0.022UF K
- 12 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
C433 0CE5651K652 C,ELECTROLYTIC 5.6UF SM 50V M C830 0CE107DH618 C,ELECTROLYTIC 100UF STD 25V M
C5 0CE225DK618 C,ELECTROLYTIC 2.2UF STD 50V M C831 0CK4710W515 C,CERAMIC(HIGH DIELE) 470PF 500V K
C501 0CQ2221N509 C,POLYESTER(MYLAR) 0.0022U 100V K C832 0CK4710W515 C,CERAMIC(HIGH DIELE) 470PF 500V K
C502 0CE224DK618 C,ELECTROLYTIC 0.22UF STD 50V M C833 181-091R CAPACITOR 1KV R 102K TP5
C503 0CX1100K409 C,TUBULA(T.C) 11P 50V J SL C834 0CQ1041N509 C,POLYESTER(MYLAR) 0.1MF 100V L
C504 0CK1040K945 C,CERAMIC(HIGH DIELE) 0.1M 50V Z C837 0CE108DH618 C,ELECTROLYTIC 1000UF STD 25V M
C505 0CK1040K945 C,CERAMIC(HIGH DIELE) 0.1M 50V Z C840 0CE108DH618 C,ELECTROLYTIC 1000UF STD 25V M
C506 0CK1040K945 C,CERAMIC(HIGH DIELE) 0.1M 50V Z C850 181-120D C,ACT 4KV E 102M
C507 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C851 181-120D C,ACT 4KV E 102M
C508 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C852 181-120D C,ACT 4KV E 102M
C509 0CE106DK618 C,ELECTROLYTIC 10UF STD 50V M C9 0CN1210K519 C,TUBULA(HIGH DIELE) 120P 50V K
C510 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C901 181-033T CAPACITOR 2KV B 222K TP7.5
C511 0CX4700K409 C,TUBULA 47P 50V J C902 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C512 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M C911 0CN4710K519 C,TUBULA(HIGH DIELE) 470PF 50V K
C513 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J C912 0CN1820F569 C,TUBULA(HIGH DIELE) 1800P 16V K
C514 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J C913 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C515 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C921 0CN4710K519 C,TUBULA(HIGH DIELE) 470PF 50V K
C516 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C922 0CN1820F569 C,TUBULA(HIGH DIELE) 1800P 16V K
C517 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C923 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C518 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M C931 0CN4710K519 C,TUBULA(HIGH DIELE) 470PF 50V K
C519 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M C932 0CN1820F569 C,TUBULA(HIGH DIELE) 1800P 16V K
C522 0CN1040K949 C,TUBULA(HIGH DIELE) 0.1M 50V Z C933 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C6 0CN1040K949 C,TUBULA(HIGH DIELE) 0.1M 50V Z C941 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C601 0CE474DK618 C,ELECTROLYTIC 0.47UF STD 50V M C942 0CK1040K945 C,CERAMIC(HIGH DIELE) 0.1M 50V Z
C602 0CE474DK618 C,ELECTROLYTIC 0.47UF STD 50V M C943 0CE107DF618 C,ELECTROLYTIC 100UF STD 16V M
C603 0CQ5621N509 C,POLYESTER(MYLAR) 5600PF 100V K C944 0CK1040K945 C,CERAMIC(HIGH DIELE) 0.1M 50V Z
C605 0CE226DK618 C,ELECTROLYTIC 22UF STD 50V M C950 0CK10201515 C,CERAMIC(HIGH DIELE) 1000P 1KV K
C606 0CE226DK618 C,ELECTROLYTIC 22UF STD 50V M C951 0CE475DR618 C,ELECTROLYTIC 4.7UF STD 250V M
C607 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M PC21 0CQ6821N509 C,POLYESTER(MYLAR) 0.0068U 100V K
C608 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M PC29 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J
C640 0CE108DH618 C,ELECTROLYTIC 1000UF STD 25V M PC36 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C643 0CE475DK618 C,ELECTROLYTIC 4.7UF STD 50V M PC41 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C7 0CQ3331N509 C,POLYESTER(MYLAR) 0.033U 100V K PC42 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J
C714 0CE477DF618 C,ELECTROLYTIC 470UF STD 16V M PC43 0CQ6831N509 C,POLYESTER(MYLAR) 0.068U 100V K
C715 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M PC44 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C8 0CN3310K519 C,TUBULA(HIGH DIELE) 330P 50V K PC46 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C801 0CQZVBK002C C,POLYESTER A.C 275V 0.22UF K PC48 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C804 181-033E CAPACITOR 1KV B 2200PF K PC49 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C805 181-033E CAPACITOR 1KV B 2200PF K PC52 0CE1086F618 C,ELECTROLYTIC 1000M SMS 16V M
C808 181-001T C,ELECTROLYTIC 400V 470UF M PC55 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
C810 0CE477BH618 C,ELECTROLYTIC 470UF KME TYPE 25V M PC56 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C811 0CE227BH618 C,ELECTROLYTIC 220UF KME 25V M PC57 0CE1051K636 C,ELECTROLYTIC 1UF SM 50V M
C812 0CE226DN618 C,ELECTROLYTIC 22UF STD 100V M PC58 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J
C813 0CK1220W515 C,CERAMIC(HIGH DIELE) 1200P 500V K PC59 0CQ2242K439 C,POLYESTER(MYLAR) 0.22UF S 50V J
C814 181-014A C,MPP 1600V 0.0022UF J PC60 0CE225DK618 C,ELECTROLYTIC 2.2UF STD 50V M
C816 181-091Z CAPACITOR 2KV R 821K TP7.5 PC61 0CQ1021N509 C,POLYESTER(MYLAR) 0.001U 100V K
C817 181-091P CAPACITOR 1KV SL 271J TP5 PC62 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C820 0CE227DP61A C,ELECTROLYTIC 220UF STD 160V M PC63 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C821 181-003B C,AL.ELECTROLYTIC CE 160V 33UF T PC64 0CE477DF618 C,ELECTROLYTIC 470UF STD 16V M
C822 0CE477DF618 C,ELECTROLYTIC 470UF STD 16V M PC65 0CE105DK618 C,ELECTROLYTIC 1UF STD 50V M
C824 0CE108DF618 C,ELECTROLYTIC 1000UF STD 16V M PC66 0CN1030F679 C,TUBULA(HIGH DIELE) 0.01MF 16V M
C825 0CE1051K636 C,ELECTROLYTIC 1UF SM 50V M PC81 0CQ1042K439 C,POLYESTER(MYLAR) 0.1UF S 50V J
C826 0CE108DH618 C,ELECTROLYTIC 1000UF STD 25V M PC82 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
C827 0CK4710W515 C,CERAMIC(HIGH DIELE) 470PF 500V K PC89 0CE476DF618 C,ELECTROLYTIC 47UF STD 16V M
C829 181-003D C,ELECTROLYTIC 160V 100UF T HR PC93 0CE106DF618 C,ELECTROLYTIC 10UF STD 16V M
- 13 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
FERRITE CORE RESISTOR
FB801 125-022K CORE,FERRITE 1UH D901 0RD2001F609 R,CARBON FILM 2.0K 1/6W 5
FB802 125-022K CORE,FERRITE 1UH FR317 180-D02D R,RNF RND(S) EQ 2W 0.68 J
FB803 125-022K CORE,FERRITE 1UH FR435 0RF0101J607 R,FUSIBLE 1 1W 5%
FB806 125-022K CORE,FERRITE 1UH FR436 0RF0331H609 R,FUSIBLE 3.3 1/2W 5
FB807 125-123A CORE,FERRITE BFD3565R2F FR437 180-D02G R,RNF RND(S) CR 2W 1.2 J
FR803 0RF0221H609 R,FUSIBLE 2.2 1/2W 5
FUSE J9 0RD0472F609 R,CARBON FILM 47 1/6W 5
F801 0FT5001B51B FUSE,TIME LAG 5000MA 250 V J216 0RD1000F609 R,CARBON FILM 100 1/6W 5
F805 131-096E FUSE,MICRO 125V 4.0A L106 0RS0222H609 R,METAL FILM OXIDE 22 1/2W 5
F806 131-096E FUSE,MICRO 125V 4.0A PR26 0RD1500F609 R,CARBON FILM 150 1/6W 5
PR34 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
COIL & TRANSFORMER PR62 0RD1000F609 R,CARBON FILM 100 1/6W 5
LS1 0LA0152K119 INDUCTOR,15UH K PR70 180-A04F R,CEMENT RW RECT G 5W 27.0 J
LS2 0LA0182K119 INDUCTOR,18UH K PR72 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
L1 0LA0272K119 INDUCTOR,27UH K PR79 0RD1500F609 R,CARBON FILM 150 1/6W 5
PR83 0RD1500F609 R,CARBON FILM 150 1/6W 5
L102 150-E16D COIL,IFT VAR,07S 1B 48.1MHZ
PR84 0RD4703F609 R,CARBON FILM 470K 1/6W 5
L103 0LA0682K119 INDUCTOR,68UH K
RS1 0RD0752F609 R,CARBON FILM 75 1/6W 5
L105 0LA0680K119 INDUCTOR,0.68UH K
RS10 0RD0752F609 R,CARBON FILM 75 1/6W 5
L153 0LA0332K119 INDUCTOR,33UH K
RS11 0RD1000F609 R,CARBON FILM 100 1/6W 5
L160 0LA0332K119 INDUCTOR,33UH K
RS12 0RD2202F609 R,CARBON FILM 22K 1/6W 5
L2 0LA0471K119 INDUCTOR 4.7UH K
RS13 0RD4702F609 R,CARBON FILM 47K 1/6W 5
L202 0LA0152K119 INDUCTOR,15UH K
RS14 0RD6200F609 R,CARBON FILM 620 1/6W 5
L301 0LA0221K139 INDUCTOR,2.2UH A +-10%
RS15 0RD1000F609 R,CARBON FILM 100 1/6W 5
L402 150-L01D COIL,H-LINEARITY 20UH
RS16 0RD3001F609 R,CARBON FILM 3.0K 1/6W 5
L404 150-C04E COIL,CHOKE 285UH R 1018
RS17 0RD1501F609 R,CARBON FILM 1.5K 1/6W 5
L501 0LA0122K119 INDUCTOR,12UH K
RS18 0RD1000F609 R,CARBON FILM 100 1/6W 5
L502 0LA0122K119 INDUCTOR,12UH K
RS19 0RD2701F609 R,CARBON FILM 2.7K 1/6W 5
L512 0LA0182K119 INDUCTOR,18UH K
RS2 0RD1000F609 R,CARBON FILM 100 1/6W 5
L802 150-C02F COIL,CHOKE 82UH R1217
RS20 0RD1202F609 R,CARBON FILM 12K 1/6W 5
L803 150-C02F COIL,CHOKE 82UH R1217
RS21 0RD1602F609 R,CARBON FILM 16K 1/6W 5
L910 0LA1200K139 INDUCTOR,120UH K
RS22 0RD0102F609 R,CARBON FILM 10 1/6W 5
L911 0LA1200K139 INDUCTOR,120UH K
RS23 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
L920 0LA1200K139 INDUCTOR,120UH K
RS24 0RD4700F609 R,CARBON FILM 470 1/6W 5
L921 0LA1200K139 INDUCTOR,120UH K
RS25 0RD3900F609 R,CARBON FILM 390 1/6W 5
L930 0LA1200K139 INDUCTOR,120UH K
RS26 0RD3900F609 R,CARBON FILM 390 1/6W 5
L931 0LA1200K139 INDUCTOR,120UH K
RS28 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
PL1 0LA0332K119 INDUCTOR,33UH K
RS3 0RD4702F609 R,CARBON FILM 47K 1/6W 5
PL12 0LA0332K119 INDUCTOR,33UH K
RS4 0RD1003F609 R,CARBON FILM 100K 1/6W 5
PL2 0LA0332K119 INDUCTOR,33UH K
RS5 0RD1000F609 R,CARBON FILM 100 1/6W 5
PL3 0LA0332K119 INDUCTOR 33UH K
RS6 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
PL5 0LA0152K119 INDUCTOR,15UH K 0RD4700F609 R,CARBON FILM 470 1/6W 5
RS8
PL7 0LA0332K119 INDUCTOR,33UH K RS9 0RD6200F609 R,CARBON FILM 620 1/6W 5
PL8 0LA0332K119 INDUCTOR,33UH K R1 0RD2200F609 R,CARBON FILM 220 1/6W 5
T401 154-179M FBT,FCM*179M-29MP6 R10 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
T402 151-C02F TRANSFORMER,H-DRIVE,EI-19,BULK R100 0RD0822F609 R,CARBON FILM 82 1/6W 5
T801 151-A03D TRANSFORMER,SMPS COIL EER4942 R101 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
R102 0RD0472F609 R,CARBON FILM 47 1/6W 5
CONNECTOR
R103 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
P501A 387-A05G CONNECTOR ASSY,5P (L=400) R104 0RD3300F609 R,CARBON FILM 330 1/6W 5
P502A 387-A04F CONNECTOR ASSY,4P (L=350) R105 0RD2702F609 R,CARBON FILM 27K 1/6W 5
P602 6631V25014L CONNECTOR ASSY,2.5MM 2P(L=600) R106 0RD0752F609 R,CARBON FILM 75 1/6W 5
P603 6631V25014H CONNECTOR ASSY,2.5MM 3P(L=800) R108 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
- 14 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
R109 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R246 0RD2200F609 R,CARBON FILM 220 1/6W 5
R11 0RD4702F609 R,CARBON FILM 47K 1/6W 5 R248 0RD3300F609 R,CARBON FILM 330 1/6W 5
R111 0RS0152H609 R,METAL FILM OXIDE 15 1/2W 5 R25 0RD2200F609 R,CARBON FILM 220 1/6W 5
R112 0RD2001H609 R,CARBON FILM 2.0K 1/2W 5 R250 0RD0391F609 R,CARBON FILM 3.9 1/6W 5
R113 0RD2001H609 R,CARBON FILM 2.0K 1/2W 5 R251 0RD0391F609 R,CARBON FILM 3.9 1/6W 5
R114 0RS1500K607 R,METAL FILM OXIDE 150 2W 5% R252 0RD2200F609 R,CARBON FILM 220 1/6W 5
R115 0RD1000F609 R,CARBON FILM 100 1/6W 5 R26 0RD2200F609 R,CARBON FILM 220 1/6W 5
R116 0RD1302F609 R,CARBON FILM 13K 1/6W 5 R27 0RD3600F609 R,CARBON FILM 360 1/6W 5
R117 0RD3002F609 R,CARBON FILM 30K 1/6W 5 R28 0RD1500F609 R,CARBON FILM 150 1/6W 5
R119 0RD9102F609 R,CARBON FILM 91K 1/6W 5 R29 0RD2200F609 R,CARBON FILM 220 1/6W 5
R123 0RD2200F609 R,CARBON FILM 220 1/6W 5 R3 0RD2200F609 R,CARBON FILM 220 1/6W 5
R124 0RS0222K607 R,METAL FILM OXIDE 22 2W 5% R30 0RD2200F609 R,CARBON FILM 220 1/6W 5
R127 0RS0222K607 R,METAL FILM OXIDE 22 2W 5% R300 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
R130 0RD0562F609 R,CARBON FILM 56 1/6W 5 R301 0RD9100F609 R,CARBON FILM 910 1/6W 5
R15 0RD2200F609 R,CARBON FILM 220 1/6W 5 R302 0RD1502F609 R,CARBON FILM 15K 1/6W 5
R16 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R303 0RD0221H609 R,CARBON FILM 2.2 1/2W 5
R161 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R304 0RD6802F609 R,CARBON FILM 68K 1/6W 5
R18 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R306 0RS1001H609 R,METAL FILM OXIDE 1.0K 1/2W 5
R19 0RD2200F609 R,CARBON FILM 220 1/6W 5 R307 0RD5101F609 R,CARBON FILM 5.1K 1/6W 5
R2 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R308 0RS0331H609 R,METAL FILM OXIDE 3.3 1/2W 5
R202 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R309 0RS0471H609 R,METAL FILM OXIDE 4.7 1/2W 5
R203 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R31 0RD2200F609 R,CARBON FILM 220 1/6W 5
R204 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R310 0RD6800H609 R,CARBON FILM 680 1/2W 5
R206 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R311 0RD6800H609 R,CARBON FILM 680 1/2W 5
R207 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R312 0RD0391F609 R,CARBON FILM 3.9 1/6W 5
R208 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R313 0RD0102F609 R,CARBON FILM 10 1/6W 5
R209 0RD1000F609 R,CARBON FILM 100 1/6W 5 R314 0RD0102F609 R,CARBON FILM 10 1/6W 5
R21 0RD4702F609 R,CARBON FILM 47K 1/6W 5 R32 0RD2200F609 R,CARBON FILM 220 1/6W 5
R210 0RD4700F609 R,CARBON FILM 470 1/6W 5 R33 0RD2200F609 R,CARBON FILM 220 1/6W 5
R211 0RD0682F609 R,CARBON FILM 68 1/6W 5 R34 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R212 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R35 0RD2200F609 R,CARBON FILM 220 1/6W 5
R214 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R36 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R215 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R37 0RD2200F609 R,CARBON FILM 220 1/6W 5
R216 0RD5602F609 R,CARBON FILM 56K 1/6W 5 R38 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R217 0RD5602F609 R,CARBON FILM 56K 1/6W 5 R39 0RD2200F609 R,CARBON FILM 220 1/6W 5
R218 0RD4700F609 R,CARBON FILM 470 1/6W 5 R4 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R22 0RD2202F609 R,CARBON FILM 22K 1/6W 5 R40 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R220 0RD0752F609 R,CARBON FILM 75 1/6W 5 R401 0RD1202F609 R,CARBON FILM 12K 1/6W 5
R23 0RD1100F609 R,CARBON FILM 110 1/6W 5 R402 0RD3900F609 R,CARBON FILM 390 1/6W 5
R230 0RD2202F609 R,CARBON FILM 22K 1/6W 5 R403 0RD7501F609 R,CARBON FILM 7.5K 1/6W 5
R231 0RD5602F609 R,CARBON FILM 56K 1/6W 5 R404 0RD1502F609 R,CARBON FILM 15K 1/6W 5
R232 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R405 0RD1000H609 R,CARBON FILM 100 1/2W 5
R233 0RD2202F609 R,CARBON FILM 22K 1/6W 5 R409 0RD1501F609 R,CARBON FILM 1.5K 1/6W 5
R234 0RD5602F609 R,CARBON FILM 56K 1/6W 5 R41 0RD4700F609 R,CARBON FILM 470 1/6W 5
R236 0RD0912F609 R,CARBON FILM 91 1/6W 5 R410 0RD2202F609 R,CARBON FILM 22K 1/6W 5
R237 0RD0912F609 R,CARBON FILM 91 1/6W 5 R411 0RD5602F609 R,CARBON FILM 56K 1/6W 5
R238 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R412 0RD4702F609 R,CARBON FILM 47K 1/6W 5
R239 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R413 0RD4702F609 R,CARBON FILM 47K 1/6W 5
R24 0RD8200F609 R,CARBON FILM 820 1/6W 5 R414 0RD2201H609 R,CARBON FILM 2.2K 1/2W 5
R240 0RD2400F609 R,CARBON FILM 240 1/6W 5 R415 0RD2400F609 R,CARBON FILM 240 1/6W 5
R242 0RD2700F609 R,CARBON FILM 270 1/6W 5 R416 0RS1001K607 R,METAL FILM OXIDE 1K 2W 5%
R243 0RD2700F609 R,CARBON FILM 270 1/6W 5 R417 0RS1801H609 R,METAL FILM OXIDE 1.8K 1/2W 5
R244 0RD2200F609 R,CARBON FILM 220 1/6W 5 R418 0RD2202F609 R,CARBON FILM 22K 1/6W 5
R245 0RD1000F609 R,CARBON FILM 100 1/6W 5 *W/PIP R419 0RD2202H609 R,CARBON FILM 22K 1/2W 5
" 0RD2700F609 R,CARBON FILM 270 1/6W 5 R42 0RD2200F609 R,CARBON FILM 220 1/6W 5
- 15 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
R421 0RD8201F609 R,CARBON FILM 8.2K 1/6W 5 R605 0RD1102F609 R,CARBON FILM 11K 1/6W 5
R422 0RD9100F609 R,CARBON FILM 910 1/6W 5 R606 0RD1102F609 R,CARBON FILM 11K 1/6W 5
R423 0RD2203F609 R,CARBON FILM 220K 1/6W 5 R607 0RD1200H609 R,CARBON FILM 120 1/2W 5
R424 0RD4702F609 R,CARBON FILM 47K 1/6W 5 R608 0RD1200H609 R,CARBON FILM 120 1/2W 5
R425 0RD3901F609 R,CARBON FILM 3.9K 1/6W 5 R61 0RD3600F609 R,CARBON FILM 360 1/6W 5
R426 0RF0102H609 R,FUSIBLE 10 1/2W 5 R62 0RD1500F609 R,CARBON FILM 150 1/6W 5
R427 0RD1201F609 R,CARBON FILM 1.2K 1/6W 5 R63 0RD3600F609 R,CARBON FILM 360 1/6W 5
R428 0RD1801F609 R,CARBON FILM 1.8K 1/6W 5 R64 0RD1500F609 R,CARBON FILM 150 1/6W 5
R429 0RD2701H609 R,CARBON FILM 2.7K 1/2W 5 R641 0RD2002F609 R,CARBON FILM 20K 1/6W 5
R43 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R644 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R430 0RD1501H609 R,CARBON FILM 1.5K 1/2W 5 R645 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R431 0RD1501H609 R,CARBON FILM 1.5K 1/2W 5 R65 0RD3300F609 R,CARBON FILM 330 1/6W 5
R432 0RD6802H609 R,CARBON FILM 68K 1/2W 5 TA52 R66 0RD1004F609 R,CARBON FILM 1.0M 1/6W 5
R433 0RS1002H609 R,METAL FILM OXIDE 10K 1/2W 5 R67 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R434 0RD2202H609 R,CARBON FILM 22K 1/2W 5 R68 0RD2200F609 R,CARBON FILM 220 1/6W 5
R435 0RD5602F609 R,CARBON FILM 56K 1/6W 5 R7 0RD2200F609 R,CARBON FILM 220 1/6W 5
R436 0RD1502F609 R,CARBON FILM 15K 1/6W 5 R70 0RD2200F609 R,CARBON FILM 220 1/6W 5
R437 0RS3300H609 R,METAL FILM OXIDE 330 1/2W 5 R709 0RD4702F609 R,CARBON FILM 47K 1/6W 5
R44 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R71 0RD2200F609 R,CARBON FILM 220 1/6W 5
R441 0RD1000F609 R,CARBON FILM 100 1/6W 5 R711 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R45 0RD2200F609 R,CARBON FILM 220 1/6W 5 R712 0RD0102F609 R,CARBON FILM 10 1/6W 5
R46 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R713 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R47 0RD2200F609 R,CARBON FILM 220 1/6W 5 R75 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R48 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R76 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R49 0RD2200F609 R,CARBON FILM 220 1/6W 5 R77 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R5 0RD2200F609 R,CARBON FILM 220 1/6W 5 R78 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R50 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R79 0RD2702F609 R,CARBON FILM 27K 1/6W 5
R501 0RD3002F609 R,CARBON FILM 30K 1/6W 5 R8 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R502 0RD1000F609 R,CARBON FILM 100 1/6W 5 R80 0RD4702F609 R,CARBON FILM 47K 1/6W 5
R503 0RD1000F609 R,CARBON FILM 100 1/6W 5 R803 0RD2000F609 R,CARBON FILM 200 1/6W 5
R504 0RD1000F609 R,CARBON FILM 100 1/6W 5 R804 0RD2000F609 R,CARBON FILM 200 1/6W 5
R506 0RD2200F609 R,CARBON FILM 220 1/6W 5 R805 0RS2202K607 R,METAL FILM OXIDE 22K 2W 5%
R507 0RD2200F609 R,CARBON FILM 220 1/6W 5 R806 0RS2202K607 R,METAL FILM OXIDE 22K 2W 5%
R508 0RD5600F609 R,CARBON FILM 560 1/6W 5 *W/PIP R807 180-A01K R,CEMENT RW ROUND G 2W 0.24 J
" 0RD7500F609 R,CARBON FILM 750 1/6W 5 R808 0RS0152K607 R,METAL FILM OXIDE 15 2W 5%
R509 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R81 0RD4702F609 R,CARBON FILM 47K 1/6W 5
" 0RD8200F609 R,CARBON FILM 820 1/6W 5 *W/PIP R811 0RD3002H609 R,CARBON FILM 30K 1/2W 5
R51 0RD2200F609 R,CARBON FILM 220 1/6W 5 R812 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5
R510 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R813 0RD2201F609 R,CARBON FILM 2.2K 1/6W 5
R511 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5 R814 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
R513 0RD2000F609 R,CARBON FILM 200 1/6W 5 R816 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
R514 0RD4703F609 R,CARBON FILM 470K 1/6W 5 R819 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R52 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R82 0RD3300F609 R,CARBON FILM 330 1/6W 5
R521 0RD3900F609 R,CARBON FILM 390 1/6W 5 R823 0RD4702F609 R,CARBON FILM 47K 1/6W 5
R53 0RD2200F609 R,CARBON FILM 220 1/6W 5 R827 0RD2001F609 R,CARBON FILM 2.0K 1/6W 5
R55 0RD2200F609 R,CARBON FILM 220 1/6W 5 R828 0RD7501F609 R,CARBON FILM 7.5K 1/6W 5
R57 0RD2200F609 R,CARBON FILM 220 1/6W 5 R83 0RD5100F609 R,CARBON FILM 510 1/6W 5
R58 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R831 0RS0470J607 R,METAL FILM OXIDE 0.47 1W 5%
R59 0RD2200F609 R,CARBON FILM 220 1/6W 5 R84 0RD1002F609 R,CARBON FILM 10K 1/6W 5
R6 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 R85A 0RD0752F609 R,CARBON FILM 75 1/6W 5
R60 0RD8200F609 R,CARBON FILM 820 1/6W 5 R85 0RD0752F609 R,CARBON FILM 75 1/6W 5
R601 0RD9100F609 R,CARBON FILM 910 1/6W 5 R850 180-C02J R,CARBON COMPOSITE 1/2W 10M K
R602 0RD2401F609 R,CARBON FILM 2.4K 1/6W 5 R86A 0RD2203F609 R,CARBON FILM 220K 1/6W 5
R603 0RD1601F609 R,CARBON FILM 1.6K 1/6W 5 R86 0RD2203F609 R,CARBON FILM 220K 1/6W 5
R604 0RD1601F609 R,CARBON FILM 1.6K 1/6W 5 R87A 0RD2203F609 R,CARBON FILM 220K 1/6W 5
- 16 -
LOCA. NO PART NO DESCRIPTION LOCA. NO PART NO DESCRIPTION
R87 0RD2203F609 R,CARBON FILM 220K 1/6W 5 X1 156-A08A CRYSTAL,32.7680KHZ +-10PPM
R88 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 X501 156-A01H CRYSTAL,4.433619 16PF 80 OHM BULK
R89 0RD4701F609 R,CARBON FILM 4.7K 1/6W 5 L801 150-F01F FILTER(CIRC),LINE EE253
R9 0RD2200F609 R,CARBON FILM 220 1/6W 5 Z101 166-268C FILTER,SAW,OFW M1963M
R901 0RS1500H609 R,METAL FILM OXIDE 150 1/2W 5 Z160 166-B02A FILTER,B.P FILTER SFSH4.5MCB-TF21
R902 0RD1000F609 R,CARBON FILM 100 1/6W 5 Z201 166-C04A FILTER,TRAP TPS4.5MWA-TF21
R910 0RD1000F609 R,CARBON FILM 100 1/6W 5
MISCELLANEOUS
R911 0RD1000F609 R,CARBON FILM 100 1/6W 5
R912 0RD2200F609 R,CARBON FILM 220 1/6W 5 351-012A LINK,POWER S/W
R913 0RD1801H609 R,CARBON FILM 1.8K 1/2W 5 PA01 106-047F PRE-AMP,SBX1940-72(38.0KHZ) MESH
R914 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% PN201 6612VJH006A JACK,RCA PJ6061A HORIZONTAL 6
R915 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% PN202 6613V00004B JACK ASSY 3P
R916 0RD1201H609 R,CARBON FILM 1.2K 1/2W 5 PN202A 6613V00004B JACK ASSY 3P
R920 0RD1000F609 R,CARBON FILM 100 1/6W 5 PN203 380-363B JACK,S-VHS
R921 0RD1000F609 R,CARBON FILM 100 1/6W 5 PN601 380-068B JACK,EARPHONE WITH SW STEREO
R922 0RD2200F609 R,CARBON FILM 220 1/6W 5 RL801 141-018E RELAY,DG12D1-0(M)-2 12V44MA
R923 0RD1801H609 R,CARBON FILM 1.8K 1/2W 5 TH801 163-051F THERMISTOR,J503P84D140M290Q
R924 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% TH802 163-048D THERMISTOR,KL15L2R5
R925 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% TH901 163-048E THERMISTOR,KC5A130L +/- 15% 500V
R926 0RD1201H609 R,CARBON FILM 1.2K 1/2W 5 TU101 6700VNF004D TUNER,TUSH8-A07A LGEC NTSC(181CH)
R930 0RD1000F609 R,CARBON FILM 100 1/6W 5 VA801 164-003D VARISTOR,SVC 561D-14A
R931 0RD1000F609 R,CARBON FILM 100 1/6W 5
ACCESSORIES
R932 0RD2200F609 R,CARBON FILM 220 1/6W 5
R933 0RD1801H609 R,CARBON FILM 1.8K 1/2W 5 A1 3828VA0151B MANUAL,OWNERS MC7CD,E.LG EN/SP
R934 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% A1 3828VA0128N MANUAL,OWNERS MC7CD CN-29H30P LG EN
R935 0RS2002K607 R,METAL FILM OXIDE 20K 2W 5% A2 6710V00012J REMOTE CONTROLLER,PIP CN-29H30P 42KEY
R936 0RD1201H609 R,CARBON FILM 1.2K 1/2W 5 A2 6710V00008C REMOTE CONTROLLER,EYE,LG
R940 0RD2700F609 R,CARBON FILM 270 1/6W 5 A2 6710V00008H REMOTE CONTROLLER,W/O EYE,OEM
R941 0RD8200F609 R,CARBON FILM 820 1/6W 5 A3 450-C07C ADAPTER,RFCONNECTING ANT
R942 0RD1001F609 R,CARBON FILM 1.0K 1/6W 5
R943 0RD4700F609 R,CARBON FILM 470 1/6W 5
R944 0RD1000F609 R,CARBON FILM 100 1/6W 5
R950 0RD2203H609 R,CARBON FILM 220K 1/2W 5
R960 180-D02G R,RNF RND(S) CR 2W 1.2 J
VR400 180-F03H R,SEMI-FIX(H) EVN-DJAA03 B103
VR401 180-F03J R,SEMI-FIX(H) EVN-DJAA03 B203
SPARK GAP
SG901 165-004A SPARK GAP,AG20PT 152F-L3N/S-23
SG902 165-004A SPARK GAP,AG20PT 152F-L3N/S-23
SG903 165-004A SPARK GAP,AG20PT 152F-L3N/S-23
SWITCH
SW1 140-315A SWITCH,TACT VERT
SW2 140-315A SWITCH,TACT VERT
SW3 140-315A SWITCH,TACT VERT
SW4 140-315A SWITCH TACT VERT
SW5 140-315A SWITCH,TACT VERT
SW6 140-315A SWITCH,TACT VERT
SW801 140-275C SWITCH,PUSH,JDPB21NA(STICK)
CRYSTAL & FILTER
PIC3 166-272C FILTER,COMB COMB UGL-350KNT(BULK)SHOWA
PX1 156-A02N CRYSTAL,STD 14.318180 16PF 25 OHM BULK
PX2 156-A02N CRYSTAL,STD 14.318180 16PF 25 OHM BULK
- 17 -
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
