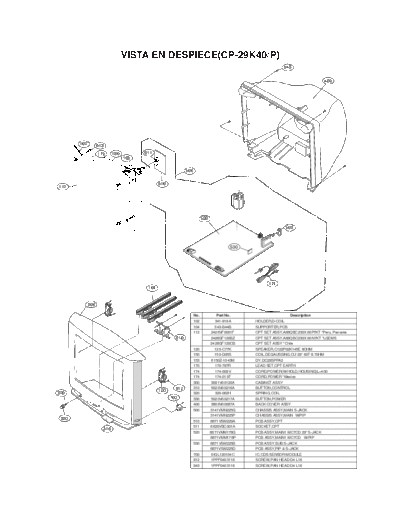

Image preview - the first page of the document
>> Download 29k40_ev documenatation <<Text preview - extract from the document VISTA EN DESPIECE(CP-29K40/P)
943
400
102 913
170 150 511
153
500
510
112
520
503
530
174
104
300
No. Part No. Description
102 341-919A HOLDER,D-COIL
104 343-B44B SUPPORTER,PCB
112 2426VF0001F CPT SET ASSY,A68QBC230X 00P7KT *Peru, Panama
310 2426GF120BZ CPT SET ASSY,A68QBC230X 00N7KT *LGEMS
2426GF120CB CPT SET ASSY *Chile
120 120-C77K SPEAKER,C122P02K145E 8OHM
150 150-D05S COIL,DEGAUSSING,CU 29" 60T 8.70HM
153 6150Z-1043M DY,DC29SPPA2
170 170-797R LEAD SET,CPT EARTH
174 174-009V CORD,POWER(W/HOLD,HOUSING)L=400
174 174-019T CORD,POWER *Mexico
300 3091V00120A CABINET ASSY
912 310 5020V00216A BUTTON,CONTROL
120
320 320 320-062H SPRING,COIL
700 330 5020V00217A BUTTON,POWER
400 3809V00087A BACK COVER ASSY
500 3141VMN225G CHASSIS ASSY,MAIN S-JACK
3141VMN225P CHASSIS ASSY,MAIN W/PIP
330
510 6871VSM229A PCB ASSY,CPT
511 6620VBC001A SOCKET,CPT
315
520 6871VMM178G PCB ASSY,MAIN1 MC7CD 29" S-JACK
6871VMM178P PCB ASSY,MAIN1 MC7CD W/PIP
530 6871VSM225B PCB ASSY,SUB S-JACK
6871VSM225D PCB ASSY,PIP & S-JACK
700 0IGL120104C IC,CDS SENSOR MODULE
912 1PPF0403116 SCREW,PAN HEAD D4 L16
943 1PPF0403116 SCREW,PAN HEAD D4 L16
- 1 -
