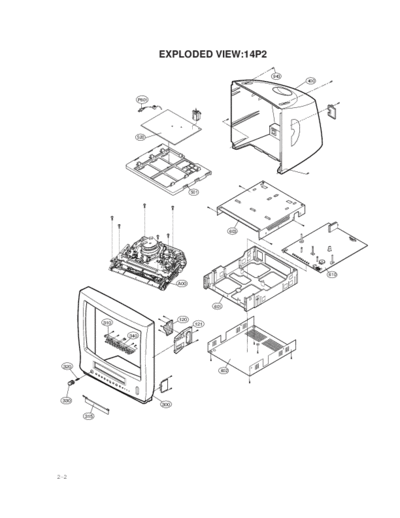

                                EXPLODED VIEW:14P2

                                                                 943
                                                                       400



                         P801




                         520




                                            501




                                                           603




                                                                             610

                                      A00




                                                   601


                                      120
             310                             121

                   340




 320
                                                     602




 330
                                300

       315




2-2
                                                                The components identified by mark          is
                                                                critical for safety.
EXPLODED VIEW PARTS LIST                                        Replace only with part number specified.



  LOCA. NO     PART NO                       DESCRIPTIONS

   112       2055-00744L   CPT SET A34KPU02XX 00N7ND
   120       6400VA0019B   SPEAKER,G9050402(C93H)8 OHM
   121       4810V00205A   BRACKET,SPK
   150       150-D02B      COIL,DEGAUSSING,CU 14" 42T 5.7 OHM
   153       153-113V      DY,DCAD2-14SNAB
   170       170-A01E      LEAD SET,CPT EARTH
   300       3091V00251G   CABINET ASSY(BLUE)
             3091V00251C   CABINET ASSY(GREEN)
             3091V00251H   CABINET ASSY(PINK)
   310       5020V00382A   BUTTON,CONTROL
   315       3580V00014J   DOOR,CST(BLUE)
             3580V00014K   DOOR,CST(PINK)
             3580V00014W   DOOR,CST(GREEN)
   320       320-075B      SPRING,KNOB
   330       5020V00381A   BUTTON,POWER
   340       5020V00383A   BUTTON,CONTROL
   400       3809V00185B   BACK COVER ASSY(GREEN)
             3809V00185C   BACK COVER ASSY(BLUE)
             3809V00185D   BACK COVER ASSY(PINK)
   501       4810V00012A   BRACKET,SMPS
   520       6871VDM105A   PWB ASSY,MAIN2 14",NARROW
   601       4810V00195C   BRACKET,MAIN
   602       4814V00158B   SHIELD,BOTTOM
   603       4814V00157E   SHIELD,TOP CASE
   610       6871VMM449A   PWB ASSY,MAIN KE,E/D/F,W/TXT,SCART
             6871VMM449B   PWB ASSY,MAIN KE,E/D/F,W/O TXT,SCART
             6871VMM449C   PWB ASSY,MAIN KL,E/D/F,W/O TXT,SCART
             6871VMM449D   PWB ASSY,MAIN KE,E/I/S,W/TXT,SCART
   913       332-057A      SCREW ASSY,HEXAGON HEAD
   943       1PTF0403116   SCREW,TAP TITE D4.0 L16.0
   A00       6721R-0105B   DECK ASSY,D33(TV-33A2OMO 1KT2,2HD,NP
   P801      174-009V      CORD,POWER(W/HOLD,HOUSING)L=400,4.0
             174-224G      CORD,POWER H03VVH2-F




                                                                                                                2-3
