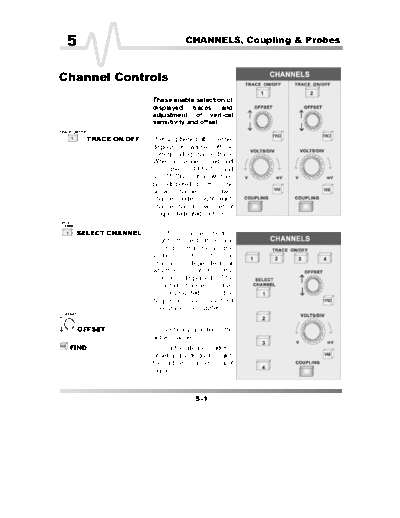

Image preview - the first page of the document



>> Download 93XXC-OM-E07 documenatation <<

Text preview - extract from the document

                              &+$11(/6 &RXSOLQJ    3UREHV



&KDQQHO &RQWUROV
                   These enable selection of
                   displayed traces and
                   adjustment of vertical
                   sensitivity and offset.

     75$&( 212))   Pressing these buttons either
                   displays or switches off the
                   corresponding channel trace.
                   When a channel is switched
                   on, the OFFSET and
                   VOLTS/DIV controls will then
                   be attributed to this, the
                   active channel. On two-
                   channel models (right), each
                   channel has its own set of
                   unique, dedicated controls.

  6(/(&7 &+$11(/   On four-channel models
                   (right), these buttons are
                   used to attribute all the
                   vertical controls to one
                   channel, independent of
                   whether or not it is the
                   channel displayed. The
                   selected channel number
                   is highlighted in the
                   Acquisition Summary field
                   (see previous chapter ).


    2))6(7         -- vertically positions the
                   active channel.
 ),1'              -- automatically adjusts
                   offset and volts/div to match
                   the active channel's input
                   signal.
