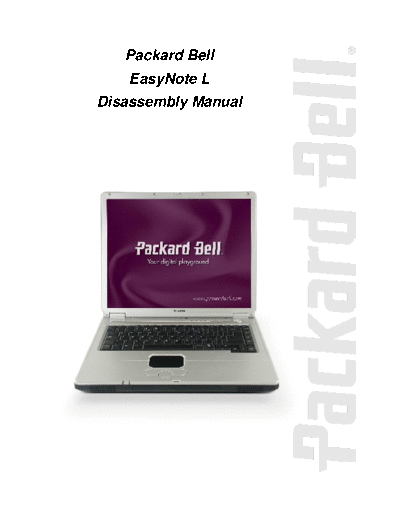

Image preview - the first page of the document
>> Download easynote l documenatation <<
Text preview - extract from the document
Packard Bell
EasyNote L
Disassembly Manual
1
Table of Contents
Overview 2
Technician Notes 2
Disassembly Instructions 2
Reassembly Instructions 2
Required Tools 2
Hazardous Voltage 3
Avoid Electrostatic Discharge 3
Power Supply Unit 3
Removing the Battery 4
Removing the Memory Module 4
Removing the Hard Disk Drive 5
Removing the Keyboard 5
Removing the Optical Disk Drive 7
Removing the LCD Module 7
Removing the LCD Panel 9
Removing the CPU 9
Removing the Top Cover 11
Removing the Touchpad 12
Removing the Chipset Heat Sink 13
Removing the WLAN Card 13
Removing the MDC Modem 14
Removing the Main Board 14
Notice 16
Packard Bell EasyNote L Disassembly Manual
2
Overview
This document contains step-by-step service instructions for the EasyNote L. The instructions are
illustrated where necessary with images of the part that is being removed or disassembled.
Packard Bell reserves the right to make changes to the EasyNote L without notice.
Technician Notes
Only technicians authorized by NEC Computers International B.V. should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module
level repair. Because of the complexity of the individual boards and subassemblies, no one should
attempt to make repairs at the component level or to make modifications to any printed wiring board.
Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring
board modifications may void any warranty or exchange allowances.
Disassembly Instructions
When disassembling the system unit, follow these general rules:
n Turn off the power and disconnect all cables and peripherals.
n Label all removed connectors. Note where the connector goes and in what position it was
installed.
n Do not disassemble the system into parts that are smaller than those specified in the
instructions.
Reassembly Instructions
Reassembly is the reverse of the disassembly process. Use care to ensure that all cables and screws are
returned to their proper positions. Check that no tools or any loose parts have been left inside the casing.
Check that everything is properly installed and tightened.
Required Tools
All disassembly procedures can be performed using the following tools:
n PH 0 x 40 Philips screwdriver
n 4.0 x 60 Flat-bladed screwdriver
n 2.0 x 30 Flat-bladed screwdriver
n SW 5.0 Spacer screwdriver
n Small tweezers
Packard Bell EasyNote L Disassembly Manual
3
WARNING
Hazardous Voltage Ensure that the computer is disconnected
There is hazardous voltage present inside the from its power source and from all
computer when it is connected to an AC supply, even telecommunications links, networks, or
when the computer' power switch is off. Exposure to
s modem lines whenever the casing cover is
hazardous voltage could cause personal injury. To removed. Do not operate the computer with
avoid risk of injury, contact an Authorized Service the cover removed.
Provider for proper (un)installation of optional
hardware devices. AVERTISSEMENT
