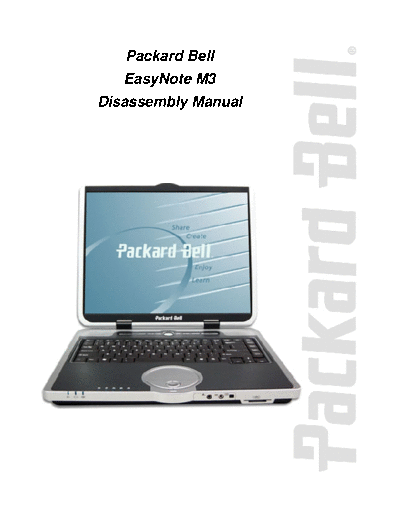

Image preview - the first page of the document
easynote m3


>> Download easynote m3 documenatation <<

Text preview - extract from the document
   Packard Bell
   EasyNote M3
Disassembly Manual
                                                                   1


Table of Contents
Overview                                                           2
Technician Notes                                                   2
Disassembly Instructions                                           2
Reassembly Instructions                                            2
Required Tools                                                     2
Hazardous Voltage                                                  3
Avoid Electrostatic Discharge                                      3
Power Supply Unit                                                  3
Battery Pack                                                       5
Heat Sink                                                          5
CPU                                                                6
HDD                                                                7
Keyboard                                                           8
CD/DVD                                                             8
Memory / Mini PCI                                                  9
LCD Assembly                                                      10
Keyboard Cover                                                    10
LCD Disassembly                                                   11
Inverter Board                                                    11
LCD Panel                                                         12
Base Assembly                                                     13
CMOS Battery                                                      14
Top Cover                                                         14
Touchpad                                                          15
System Board                                                      16
Modem                                                             17
Speakers                                                          17
Case Fan                                                          18
Notice                                                            19




                    Packard Bell Easynote M3 Disassembly Manual
                                                                                          2


Overview
This document contains step-by-step disassembly instructions for the EasyNote M3
notebook. The instructions are illustrated where necessary with images of the part that
is being removed or disassembled. Furthermore, the screws that are removed are
shown next to the image of the parts themselves.

Packard Bell reserves the right to make changes to the EasyNote M3 notebook without
notice.


Technician Notes
Only technicians authorized by NEC Computers International B.V. should attempt to
repair this equipment. All troubleshooting and repair procedures are detailed to allow
only subassembly/module level repair. Because of the complexity of the individual
boards and subassemblies, no one should attempt to make repairs at the component
level or to make modifications to any printed wiring board. Improper repairs can create a
safety hazard. Any indication of component replacement or printed wiring board
modifications may void any warranty or exchange allowances.


Disassembly Instructions
When disassembling the system unit, follow these general rules:

         Turn off the power and remove the battery.
         Disconnect all cables and peripherals.
         Label all removed cables. Note where the cable goes and in what position it
         was installed.
         Do not disassemble the system into parts that are smaller than those specified
         in the instructions.


Reassembly Instructions
Reassembly is the reverse of the disassembly process. Use care to ensure that all
cables and screws are returned to their proper positions. Check that no tools or any
loose parts have been left inside the chassis. Check that everything is properly installed
and tightened.


Required Tools
All disassembly procedures can be performed using the following tools:

         Philips (#2 bit) screwdriver
         A small flat bed screwdriver




                     Packard Bell Easynote M3 Disassembly Manual
                                                                                       3


Hazardous Voltage                                 Power Supply Unit
There is hazardous voltage present inside the     Under no circumstances should you
computer when it is connected to an AC            attempt to disassemble the power
supply, even when the computer's power            supply. The power supply contains
switch is off. Exposure to hazardous voltage      no user-serviceable parts. Inside the
could cause personal injury. To avoid risk of     power supply are hazardous
injury, contact an Authorized Service Provider    voltages that can cause serious
for proper (un)installation of optional           personal injury. Always return a
hardware devices.                                 defective power supply to your
                                                  dealer.
                                                  WARNING
Avoid Electrostatic Discharge                     Ensure that the notebook is
Electrostatic electricity can easily damage       disconnected from its power source
circuit cards and integrated circuits (ICs). To   and from all telecommunications
reduce risk of damage, store them in              links, networks, or modem lines
protective packaging whenever they are not        whenever the notebook cover is
installed in your system.                         removed. Do not operate the
                                                  notebook with the cover removed.
Add-in cards can be extremely sensitive to
ESD and always require careful handling.          AVERTISSEMENT
After removing the card from the computer,        Assurez-vous que le syst
