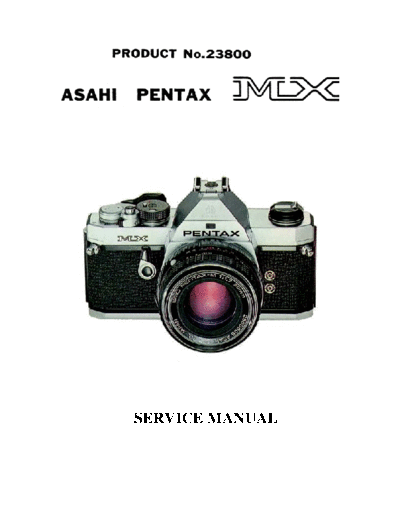

Image preview - the first page of the document
PENTAX_MX


>> Download PENTAX_MX documenatation <<

Text preview - extract from the document
SERVICE MANUAL
                                           23800           MX

     Disassembly procedure

1. Peel off Body coverings (A19 & A20)

2. Remove Bottom cover (A400), Connector seat (A34) and Tripod screw (All).
                                         CSS 1.7 x 2.2 x 3, CSM 1.7 x 3.5 x 2

3. Remove Top cover (A300)
          a.) Retainer screw (Left handed)
               Winding lever assembly (C300)
               Cover ring B (A329)

             b.) Shutter dial-- ASA100, 1/1000
                  Shutter dial screw (E231) -- 23800K-E321A
                  Shutter dial assembly (0-E223), Hook pin (E228)
                  Speed dial assembly (0-E229)

             c.) Knob assembly (0-D1)
                  Nut (D12)--23110-D16-1-A
                  Cover ring (D7)
