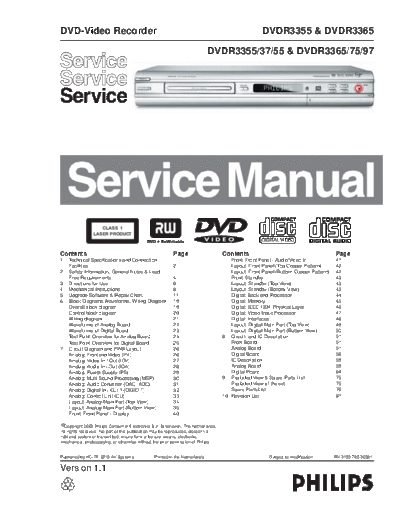

Image preview - the first page of the document
>> Download dvdr3355_r3365_3139_785_30981_126 documenatation <<Text preview - extract from the documentDVD-Video Recorder DVDR3355 & DVDR3365
DVDR3355/37/55 & DVDR3365/75/97
CLASS 1
LASER PRODUCT
Contents Page Contents Page
1 Technical Specifications and Connection Front: Front Panel - Audio/Video In 41
Facilities 2 Layout: Front Panel (Top Copper Pattern) 42
2 Safety Information, General Notes & Lead Layout: Front Panel (Bottom Copper Pattern) 42
Free Requirements 4 Front: Standby 43
3 Directions for Use 6 Layout: Standby (Top View) 43
4 Mechanical Instructions 8 Layout: Standby (Bottom View) 43
5 Upgrade Software & Repair Chart 11 Digital: Back-end Processor 44
6 Block Diagrams,Waveforms, Wiring Diagram 19 Digital: Memory 45
Overall block diagram 19 Digital: IEEE 1394 Physical Layer 46
Control block diagram 20 Digital: Video Input Processor 47
Wiring diagram 21 Digital: Interfaces 48
Waveforms of Analog Board 22 Layout: Digital-Main Part (Top View) 49
Waveforms of Digital Board 23 Layout: Digital-Main Part (Bottom View) 50
Test Point Overview for Analog Board 24 8 Circuit- and IC Description 51
Test Point Overview for Digital Board 25 Front Board 51
7 Circuit Diagram and PWB Layout 26 Analog Board 51
Analog: Frontend Video (FV) 26 Digital Board 56
Analog: Video In / Out (IOV) 27 IC Description 59
Analog: Audio In / Out (IOA) 28 Analog Board 59
Analog: Power Supply (PS) 29 Digital Board 64
Analog: Multi Sound Processing (MSP) 30 9 Exploded View & Spare Parts List 75
Analog: Audio Converter (DAC_ADC) 31 Exploded View of the set 75
Analog: Digital In / Out 1 (DIGIO 1) 32 Spare Parts List 76
Analog: Control Unit (CU) 33 10 Revision List 81
Layout: Analog-Main Part (Top View) 34
Layout: Analog-Main Part (Bottom View) 35
Front: Front Panel - Display 40
