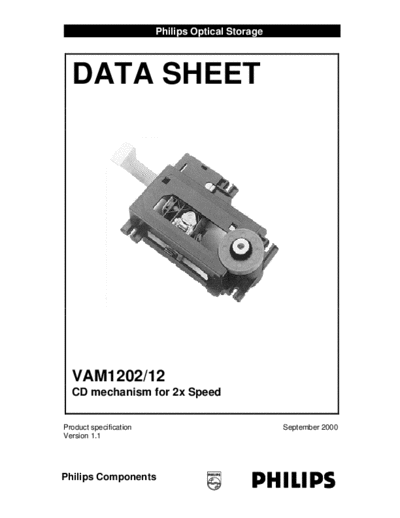

Image preview - the first page of the document
docslide.us_philips-vam1202


>> Download docslide.us_philips-vam1202 documenatation <<

Text preview - extract from the document
                        Philips Optical Storage



  DATA SHEET




  VAM1202/12
  CD mechanism for 2x Speed


Product specification                             September 2000
Version 1.1




Philips Components
Philips Optical Storage                                                   Product Specification

CD Mechanism for 2x                                                                    VAM1202/12


                              SCOPE OF THIS DOCUMENT
   This document describes the Commercial specification of the CD mechanisms.

   The provisions of this document may be altered upon agreement between both parties

   If any disagreement should arises, this two parties shall meet in good faith to resolve the matter

   Within the range of these specifications, parts are subjected to change without prior notice for
   technical improvement.

   Please ensure to observe strictly the following, otherwise. PHILIPS may not be able to assume
   the responsibility for things to happen :
       * Always use the CD mechanism(s) within the conditions given in the specification
       * No additional process be given to the CD mechanism(s)
       * Ensure the set contains PHILIPS CD mechanism(s) is in compliance with the rules and
         regulations for spurious radiation
       * Measure the leakage of laser output from a set containing the CD mechanism(s) and
         ensure that the set is in compliance with applicable requirements
       * Always adhere to the handling instructions




All Rights are reserved. Reproduction in whole or in part is prohibited without the prior written
consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is
believed to be accurate and reliable and may be changed without notice. No liability will be
accepted by the publisher for any consequence of its use. Publication thereof does not convey nor
imply any license under patent or other industrial or intellectual property rights.

                                              1
Philips Optical Storage                                        Product Specification

CD Mechanism for 2x                                                        VAM1202/12

Type Number :- VAM1202/12
Code Number (12NC) :- 9305 022 20212
Revision History
Version     Nr. Page       Date             Remarks
1.0         -     All      -                First Release

1.1         5         14   1 Sep 2000       Changes in Lightpen and Turntable material
                                            list
            3.1       11                    Delete Full Spec and replace Functional to
                                            Operational Temp
                                            Typo error, Operational Temp: -10 to +55
