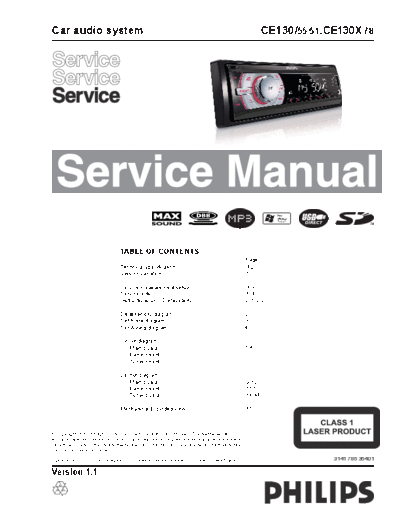

Image preview - the first page of the document
>> Download CE130-55 documenatation <<
Text preview - extract from the document
Car audio system CE130/ 55/51, CE130X/78
TABLE OF CONTENTS
Page
Technicalspecification.............................................1-2
Versionvariation......................................................1-2
Servicemeasurementsetup.....................................1-3
Serviceaids............................................................1-4
InstructionsonCDplayability..................................2-1..2-2
Disassemblydiagram...............................................2
SetBlockdiagram....................................................3
SetWiringdiagram..................................................4
Circuitdiagram
Mainboard.........................................................5,6
Panelboard........................................................7
Tunerboard........................................................8
Layoutdiagram
Mainboard..........................................................9,10
Panelboard........................................................11,12
Tunerboard........................................................13,14
MechanicalExplodedview......................................15
