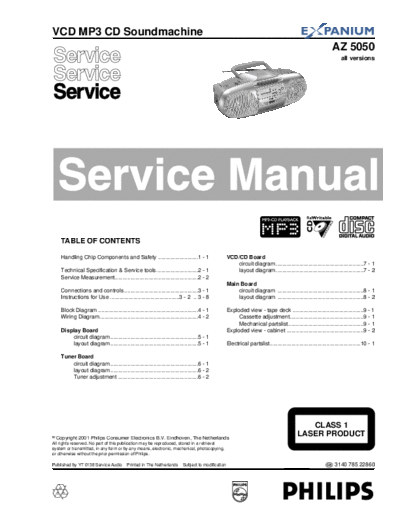

Image preview - the first page of the document



>> Download service documenatation <<

Text preview - extract from the document

VCD MP3 CD Soundmachine
                                                                                                                                                               AZ 5050
                                                                                                                                                                    all versions




    TABLE OF CONTENTS

    Handling Chip Components and Safety ..........................1 - 1                            VCD/CD Board
                                                                                                       circuit diagram .........................................................7 - 1
    Technical Specification & Service tools ...........................2 - 1                           layout diagram.........................................................7 - 2
    Service Measurement......................................................2 - 2
                                                                                                   Main Board
    Connections and controls ................................................3 - 1                     circuit diagram ........................................................8 - 1
    Instructions for Use .............................................3 - 2 .. 3 - 8                   layout diagram ........................................................8 - 2

    Block Diagram .................................................................4 - 1           Exploded view - tape deck ..............................................9 - 1
    Wiring Diagram ................................................................4 - 2                Cassette adjustment................................................9 - 1
                                                                                                        Mechanical partslist.................................................9 - 1
    Display Board                                                                                  Exploded view - cabinet ..................................................9 - 2
        circuit diagram .........................................................5 - 1
        layout diagram.........................................................5 - 1               Electrical partslist...........................................................10 - 1

    Tuner Board
        circuit diagram .........................................................6 - 1
        layout diagram.........................................................6 - 2
        Tuner adjustment ....................................................6 - 2
