Service Manuals, User Guides, Schematic Diagrams or docs for : Philips Audio DCM2170 dcm2170
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

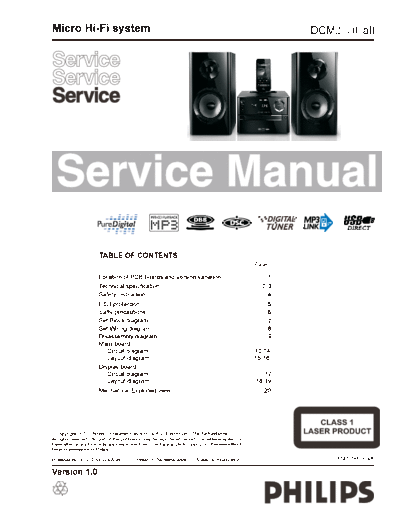

Image preview - the first page of the document
>> Download dcm2170 documenatation <<
Text preview - extract from the document
DCM2170/all
DCM2170
DCM2170
PAGE-2
MCM2170 Elec parameter Test Report
TEST CONDITIONS:
1.POWER SUPPLY: AC.Accordiing to Ver
2.REF OUTPUT:8 1W , Sound effect off
3.FM MONO: 22.5KHz Dev,1KHz MODULATION ,75 IMPEDANCE ,60dBu
4.FM STEREO : MAIN+SUB = 50KHz, PILOT : 10KHz,COMPOSITE: 40.0KHz
FM SECTION
TEST DATA
NO TEST ITEMS UNIT NOM. LIMIT
1# 2#
87.5 87.5 87.5
1 Fvequency Range MHz
108 108 108
90 18 22 17 17
2 26dB QUENTING SENSITIVITY 98 dBf 18 22 18 17
106 18 22 19 18
3 -3dB LIMITING POINT dBf 17 25 17 19
4 FM IF REJECTION 98MHZ S/N=26dB dB 55 50 >55 >55
5 IMAGE REJECT 98MHZ S/N=26dB dB 24 20 >24 >24
6 SELECTIVITY S 0.3 dB 40 33 / /
MONO 55 50 58 58
7 S/N
ST 55 50 / /
8 OVERALL DISTERTION % 3 5 0.3 0.4
9 MODULATION HUM dB 45 40 46 43
