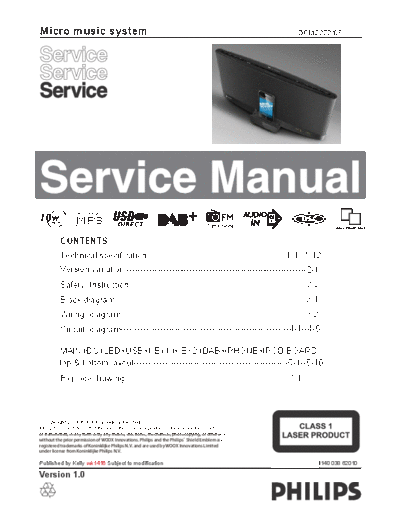

Image preview - the first page of the document
>> Download service documenatation <<
Text preview - extract from the document
Micro music system DCM2272/05
CONTENTS
Technical specification-------------------------------------------------1-1--1-12
Version variation ---------------------------------------------------------------2-1
Safety Instruction -------------------------------------------------------------2-2
Block diagram-------------------------------------------------------------------3-1
Wiring diagram ----------------------------------------------------------------3-2
Circuit diagram-----------------------------------------------------------4-1--4-6
MAIN+DC+LED+USB+KEY1+KEY2+DAB+IPHONE+IPOD BOARD
top & bottom layout------------------------------------------------------5-1--5-10
Explode drawing --------------------------------------------------------6-1
Published by Kelly wk1416 Subject to modification 314 038 62010
Version 1.0
TECHNICAL SPECIFICATION 1-1
DCB2272
Technical Specifications
(Sheet-190)
Type: Mirco
Performance Class: According to PQR (Product Quality and Reliability)
Commercial Set Type/Stroke Versions:
Prepared: Cheeked:
( R&D Engineer) (R&D Chief engineer)
Approved: Approved: Approved:
(PHILIPS_ODM) (PHILIPS DEV-Q) (PHILIPS QAD)
TECHNICAL SPECIFICATION 1-2
DEPICTION Pos Description Page
1 POWER
2 SOURCE
3 PLAY
4 STOP
5 USB
6 CD OPEN
7 SKIP-
8 SKIP+
9 VOL -
10 VOL +
11 DISPLAY
12 IPOD SUPPORT RUBBER
13 IPOD DOCKING
14 FRONT LENS
15 SPEAKER GRILL
16 FRONT CABINET
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
CABINET
Diemensions with Boxes ( wxhxd) (W)466x(H)274x(D)147mm Material : HIPS / ABS
Diemensions without Boxes ( wxhxd ) (W)420x(H)226x(D)97mm Finshing : Mold black color / spray silver/silkscreen
Weight ( inclusive packing ) 3.6KG Units in Masstercarton:1sets
Weight ( exclusive packing & battery ) 2.3KG Units in Dealer carton : N/A
Remarks :
1
Remark : General Mech. Requirement, refer to PQP or PQR
GENERAL PART 1 - FRONT PANNEL SPECICFICATION
Class No Ver Issued Date
DCB2272 MICRO SYSTEM WITH 1
IPHONE DOCK 2
3
Prepared : MS Choi 10 SH 190 - 1 A4
CHECK:MS Choi 2013-8-30 YUSAN INDUSTRIES LTD
TECHNICAL SPECIFICATION 1-3
DEPICTION Pos Description Page
1 75 FM ANT
2 AUDIO IN
3 HEADPHONE
4 DC IN
5 USB SOCKET
6 BOTTOM CABINET
7 STAND BASE
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
CABINET
Diemensions with Boxes ( wxhxd) (W)466x(H)274x(D)147mm Material :HIPS / ABS
Diemensions without Boxes ( wxhxd ) (W)420x(H)226x(D)97mm Finshing :Mold black color / spray silver/silkscreen
Weight ( inclusive packing ) 3.6KG Units in Masstercarton:1sets
Weight ( exclusive packing & batery )2.3KG Units in Dealer carton : N/A
GENERAL PART 1 - BACK PANNEL SPECICFICATION
Class No Ver Issued Date
DCB2272 MICRO SYSTEM 1
WITH IPHONE DOCK 2
3
Prepared : MS Choi 10 SH 190 - 2
CHECK: MS Choi DATE 2013-8-30 YUSAN INDUSTRIES LTD
TECHNICAL SPECIFICATION 1-4
GENERAL DESCRIPTION
Micro Hi-Fi System with PLL Tuner , CD-MP3, USB ,IPHONE/IPOD/IPAD DOCKING POWER OUTPUT : 5W * 2
MP3 LINK , Remote Control
LIFETIME : 7 Years
Loudspeaker
Class Tuner Supply + Amplifier IPHONE/IPOD USB CD Clock MP3 LINK
Boxes
I X
II X X X X X X
III
Page 9 4,5 4 11 6 7 8 10
SAFETY requirements
Version Safety EMC
12/ IEC60065
55/ IEC60065 x
98/ IEC60065
3 7/ U L6 500 FCC
05/ IEC60065
RADIATION / IMMUNITY requirments ( EMC )
CLIMATIC requirements
ALL climates : + 5 Dregree till + 35 Degree
MODERATE climates : + N.A till N.A Degree
PERFORMANCE CLASSES
POWER SUPPLY
MAINS ( A.C. ) 110V-240V AC 110V-240V AC 110V-240V AC
Version 12/93/96 /55/98 37/ 05/79
Voltage Selection NO NO NO NO
Frequency 50/60HZ 60/50Hz 50/60HZ 50/60HZ
POWER CONSUMPTION :
ALL VERSION
Stadby : <1W
( DEMO mode " OFF " ) , NOM. A, INPUT
Maximum :
@ 1/8 Prated , NOM. A, INPUT <15W
ECO Power mode : <0.5W
Q and R according to Product Division Rules
Quality : 0.4 % ( Major ) 1.5 % ( Mirror )
Reliability : 2.0 % ( C 42 )
Tested according to General Test Instruction refer to PHILIPS standary ( UAN -D1591 )
Measured according to PHILIPS standary ( UAN - L1059 ) unless other wise stated
All not mentioned date, please refer to PHILIPS standary ( XUW - 0010 - jun 2001)
DERIVED REMARKS APPROBATION
Remarks:General Mech. Requirement, refer to PQP or PQR
GENERAL PART 1 - GENERAL SPECICFICATION
Class No Ver Issued Date
1
2
3
Prepared :MS Choi 10 SH 190 - 3 A4
CHECK:MS Choi DATE; 2013-8-30 YUSAN INDUSTRIES LTD
TECHNICAL SPECIFICATION 1-5
TECHNIAL DESCRIPTION
2X5 W, matching SPEAKER of 2 x 6 ohm. ( Digital Sound Control )
GENERAL PART
OUTPUT stage Protection : Yes Temperature : YES Shorcircuit : Yes
LoudSpeaker D.C. Protection : Yes.
INDICATORS
Standby Mode Indicator : LED display Clock active,
ECO Mode Indiicator : NO
ELECTRICAL DATA
DSC : Rock, Jazz, Optimal, Techno Channel Differencer at -46dB 3 dB
