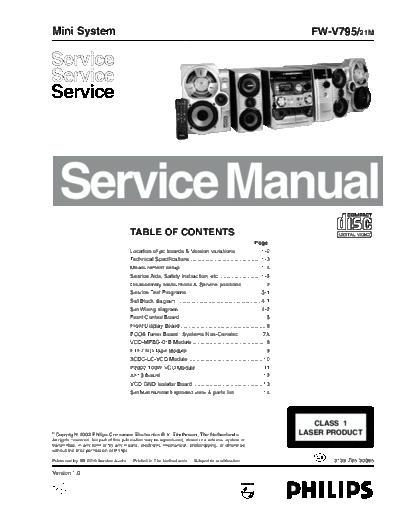

Mini System                                                                                                                  FW-V795/21M

Service
Service
Service




     Service Manual
                                        TABLE OF CONTENTS
                                                                                                               Page
                                        Location of pc boards & Version variations ................ 1-2
                                        Technical Specifications ............................................. 1-3
                                        Measurement setup .................................................... 1-4
                                        Service Aids, Safety Instruction, etc. .......................... 1-5
                                        Disassembly Instructions & Service positions .............. 2
                                        Service Test Programs ............................................... 3-1
                                        Set Block diagram ...................................................... 4-1
                                        Set Wiring diagram ..................................................... 4-2
                                        Front Control Board ....................................................... 5
                                        Front Display Board ....................................................... 6
                                        ECO6 Tuner Board : Systems Non-Cenelec .............. 7A
                                        VCD-MPEG-01B Module ............................................... 8
                                        ETF7 ND Tape Module .................................................. 9
                                        3CDC-LC-VCD Module ............................................... 10
                                        P2002 100W VCD Module .......................................... 11
                                        AF10 Board .................................................................. 12
                                        VCD GND Isolator Board ............................................ 13
                                        Set Mechanical Exploded view & parts list ................. 14




                                                                                                                              CLASS 1
