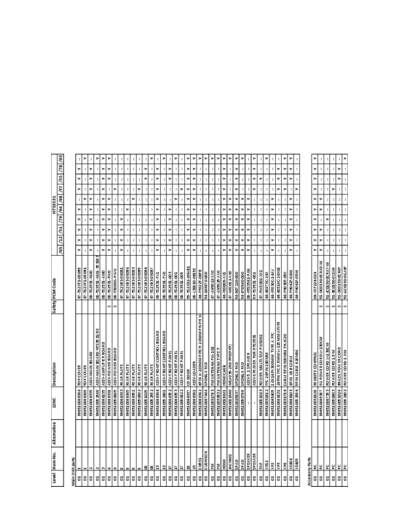

Image preview - the first page of the document
>> Download philips_hts3531_ver.1.1 documenatation <<
Text preview - extract from the document
Level Item No. Alternative 12NC Description Safety PCM Code HTS3531
/05 /12 /51 /79 /94 /98 /F7 /55 /78 /93
Main Unit parts
01 1 996510046344 TOP COVER 67-TS2XT1-0E0B5 -- --
01 1 996510046349 TOP COVER 67-TS2XT1-0E0B1 -- -- -- -- -- -- -- --
01 2 996510046335 ASSY-MAIN BOARD 08-TS2531-MA0 --
01 2 996510052549 ASSY-MAIN BOARD HTS3531/93 08-TS3531-MA1-353193C -- -- -- -- -- -- -- -- --
01 3 996510046135 ASSY-AMPLIFIER BOARD 08-TS2531-AM0
01 4 996510046338 ASSY-POWER BOARD $ 08-TS2531-PW0 --
01 4 996510050805 ASSY-POWER BOARD $ 08-T300HA-PWU -- -- -- -- -- -- -- -- --
01 8 996510046333 REAR PLATE 67-TS2XB3-0E0B1 -- -- -- -- -- --
01 8 996510046345 REAR PLATE 67-TS2XB3-0E0B4 -- -- -- -- -- -- -- -- --
01 8 996510046351 REAR PLATE 67-TS2XB3-0E0B3 -- -- -- -- -- -- -- -- --
01 8 996510050802 REAR PLATE 67-TS2XB3-0E0B5 -- -- -- -- -- -- -- -- --
01 08 996510051025 REAR PLATE 67-TS2XB3-0E0B6 -- -- -- -- -- -- -- --
01 08 996510052552 REAR PLATE 67-TS2XB3-0E0B7 -- -- -- -- -- -- -- -- --
01 13 996510046346 ASSY-FRONT CONTROL BOARD 08-TS2531-FV1 --
01 13 996510052601 ASSY-FRONT CONTROL BOARD 08-TS3531-FV0 -- -- -- -- -- -- -- -- --
01 17 996510046352 ASSY-FRONT PANEL 08-TS2531-003 -- -- --
01 17 996510046353 ASSY-FRONT PANEL 08-TS2531-001 -- -- -- -- -- -- -- --
01 17 996510050822 ASSY-FRONT PANEL 08-TS3531-005 -- -- -- -- -- -- -- -- --
01 18 996510046337 CD DOOR 55-TS2XD2-0HAB1
01 23 996510046341 ASSY-LOADER 08-L31810-0615E
01 CN531 996510046342 6PIN L=220MM PITCH 2.0MM PH-PH WIT 46-FF022T-06PB -- -- -- -- -- -- -- -- --
01 CUSHIION 996510047444 SPONGE PAD 54-103870-000 -- -- -- -- -- -- -- -- --
01 FM 996510031783 FM ANTENNA FIA-101 47-ANT022-XX0 -- -- -- -- -- -- -- -- --
01 FM 996510036532 FM ANTENNA TYPE T 47-ANT025-XX0 -- -- -- -- -- -- -- -- --
01 HDMI 996510018621 HDMI Cable 46-HDI009-XX1
01 JACK602 996510011940 MSJ-035-29D PP0(PHT) 47-MIC012-XX0 -- -- --
01 SPAD 996510025837 SPONGE PAD 54-907220-000
01 SPAD 996510050799 SPONGE PAD 54-970540-000 -- -- --
01 SPEAKER -- ASSY-5.1 SPEAKER 08-HTS3541-PAN -- -- -- --
01 SPEAKER -- ASSY-SPEAKER FOR HTS3531 93-TS3531-001 -- -- -- -- -- --
01 TAP 996510051023 POWER MULTI-TAP PWS002 47-PWS002-XX1 -- -- -- -- -- -- -- -- --
01 XP11 996510031812 FFC 24PIN 240MM 46-40273C-24X -- -- -- -- -- -- -- -- --
01 XP2 996510045405 1.0X14PX300MM TYPE A FFC 46-KF030C-14AV -- -- -- --
01 XP3 996510046131 24PIN FFC 0.5MM L=125MM ATYPE 46-40314C-24X01 -- -- -- -- -- -- --
01 XP6 996510031786 CABLE 5PIN 300MM FH-JC20 46-FH030T-05K -- -- -- -- -- --
01 XS604 996510046103 4PIN USB CABLE 46-FH042F-04M --
01 XS605 996510052596 5PIN CABLE 620MM 46-FH062F-05M -- -- -- -- -- -- -- -- --
Accessory Parts
01 RC 996510031828 REMOTE CONTROL 06-YKF224-024
01 PC 996510045387 EU POWER CORD L=130CM $ 51-DC0130-0CRA3-M -- -- -- -- --
01 PC 996510047353 POWER CORD L=130CM $ 51-JC0130-0CRA7-M -- -- -- -- -- -- -- -- --
01 PC 996510050803 POWER CORD 1.5M $ 51-BC0150-0LSA9 -- -- -- -- -- -- -- -- --
01 PC 996510051024 BRAZIL POWER CORD $ 51-DC0130-0CR07 -- -- -- -- -- -- -- --
01 PC 996510052602 POWER CORD 1.3M $ 51-GC0130-0GAB7 -- -- -- -- -- -- -- -- --
Level Item No. Alternative 12NC Description Safety PCM Code HTS3531
/05 /12 /51 /79 /94 /98 /F7 /55 /78 /93
Speakers
002 FL 996510047361 ASSY-FRONT LEFT SPEAKER 08-TS3531-FLNS0 --
002 FR 996510047355 ASSY-FRONT RIGHT SPEAKER 08-TS3531-FRNS0 --
002 CC 996510047356 ASSY-CENTER CHANNEL SPEAKER 08-TS3531-IFNS0 --
002 RL 996510047358 ASSY-REAR LEFT SPEAKER 08-TS3531-RLNS0 --
002 RR 996510047357 ASSY-REAR RIGHT SPEAKER 08-TS3531-RRNS0 --
002 BS 996510047359 ASSY-BASS SPEAKER 08-TS3531-WFNS --
002 SPKC 996510046362 SPEAKER BOX-CENTER ANC503541-BW01 -- -- -- -- -- -- -- -- --
002 SPKRR 996510046361 SPEAKER BOX REAR-R ANU503541-BW02 -- -- -- -- -- -- -- -- --
002 SPKFL 996510046357 SPEAKER BOX FRONT-L ANM503541-BW01 -- -- -- -- -- -- -- -- --
002 SPKFR 996510046359 SPEAKER BOX FRONT-R ANM503541-BW02 -- -- -- -- -- -- -- -- --
002 SUB 996510046363 SPEAKER BOX-SUBWOOFER ANW503541-BW01 -- -- -- -- -- -- -- -- --
002 SPKRL 996510046358 SPEAKER BOX REAR-L ANU503541-BW01 -- -- -- -- -- -- -- -- --
Main Unit-Loader
002 OPU 996510031313 IM S76RFXP2 OPU 05-000CMS-76RP2
Main Unit - ASSY-FRONT DISPLAY BOARD
002 D1 996510002996 DIODE 1N4148 (SWITCHING) 10-1N4148-ABX
002 ESD1 996510013349 HDMI USB ESD PYOTECTION IC 13-PRTR5V-02BGA
002 IR601 996510046123 HM338-12 RECEIVER MODULE H=12MM 02-IRR006-XX0L
002 JACK602 996510011940 MSJ-035-29D PP0(PHT) 47-MIC012-XX0
002 K135 996500014031 TACT SWTICH TSAB-1 48-TAC020-XX0
002 K136 996500014031 TACT SWTICH TSAB-1 48-TAC020-XX0
002 K138 996500014031 TACT SWTICH TSAB-1 48-TAC020-XX0
002 LED1 996510041434 LED DISPLAY LED03R 14-LED03R-XX3-M
002 P801 996510034574 USB SOCKET 47-USB013-XX1 --
002 Q1 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q135 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q136 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q137 996510009736 SMD TRANSISTORMMBT3906LT1 PNP 12-BT3906-0BX
002 Q138 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q139 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q2 996510009736 SMD TRANSISTORMMBT3906LT1 PNP 12-BT3906-0BX
002 Q3 996510009669 SMD.TRANSISTOR MMBT3904LT1 NPN 12-BT3904-0BX
002 Q620 996510009736 SMD TRANSISTORMMBT3906LT1 PNP 12-BT3906-0BX
002 S608 996500014031 TACT SWTICH TSAB-1 48-TAC020-XX0 --
002 U135 996510025957 IC PT6312 VFD DRIVER QFP44 13-PT6312-00B
002 U602 996510010924 Dual operational amplifier 13-F45580-00B
002 VFD 996510045416 EIGHT WORD VFD DISPLAY 14-FV935N-D0F-M
002 XS605 996510033496 CABLE 3PIN/2.0MM/640MM 46-FH064F-03M --
002 ZD135 996500015818 DIODE ZENER 6V2 1/2W 5% 10-79C6V2-DBX
002 ZD136 996510003097 DIODE ZENER 5V1 1/2W 5% 10-79C5V1-DBX
Main Unit - ASSY-AMPLIFIER BOARD
Level Item No. Alternative 12NC Description Safety PCM Code HTS3531
/05 /12 /51 /79 /94 /98 /F7 /55 /78 /93
002 D705 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D706 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D707 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D708 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D709 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D710 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D711 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 D712 996510014439 SMD. SWITCHING DIODE LL4148 09-LL4148-ATX
002 JK701 996510033523 SPEAKER JACK 5.1CH 47-SPK032-XX0
002 L702 996510046128 INDUCTANCE 22UH◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
