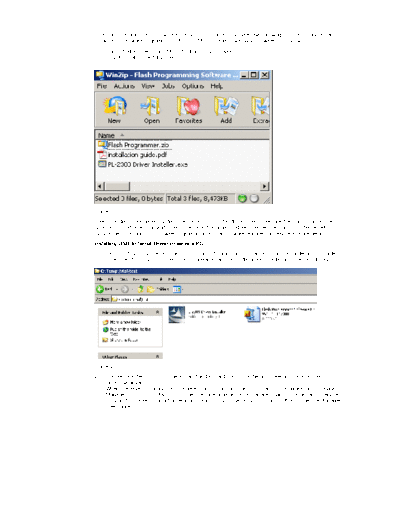

Image preview - the first page of the document



>> Download Flash Programming Software Kit 9965 100 17380 documenatation <<

Text preview - extract from the document

"The Flash Programming Software Kit 9965 100 17380.zip" includes the following application and driver
software for firmware upgrading of IPOD, HDMI CEC and Power Box software in HTS8140:
1)   Flash Programmer (Flash MCU Programming Software)
2)   PL-2303 USB-to-Serial Driver




Figure 1
Note: This document generally describes how to install the driver, how to prepare the Flash Programmer
Application, and how to upgrade the software of the target module. The service manual of the set will
include the information on software upgrading and other software features for service in more details.
Installing USB-to-Serial Driver in service PC
1)   Extract "PL-2303 Driver Installer" from "Flash Programming Software Kit.zip" into a destination folder
     in service PC. PL-2303 Driver should appear as an icon in destination folder as shown in figure 2.




Figure 2
2)   Double-click the icon to run the InstallShield Wizard and follow the on-screen instructions then to
     install the driver.
3)   When the driver installation is completed, go to Control Panel -> System -> Hardware tab -> Device
     Manager-> Ports (COM & LPT). If the interface programming interface board is connected to service
     PC via USB cable, it should appear as "Prolific USB-to-Serial Comm Port (COMx)" in Device Manager
     (see figure 3).
                                                            Take note of COM port number




     Figure 3

4)    Take note of the COM Port number to use it for setting the Flash Programmer Communication
     configuration which will be described in next section.
Note: the USB-to-Serial Comm Port will not show up in Device Manager if the programming interface
board is not connected to service PC via USB cable.
Preparing Flash Programmer Software
1)   Open zip file "Flash Programmer.zip" from "Flash Programming Software Kit.zip" and extract all the
     files as shown in figure 4. A folder "Flash Programmer" and 8 setup files should appear in the
     destination folder as shown in figure 5.




                Choose Destination




           Extract all files




Figure 4
                                                                        Set up files




            Figure 5
            2)   The required program, "FlashProg.exe" should be found in "Flash Programmer" folder as shown in
                 figure 6.




            Figure 6

5.3.1.   Preparing the Flash Programmer

            1)   Configuring the work environment features

            To use the flash programmer application to download the software upgrade to the target board, the
            following work environment features must be configured:
