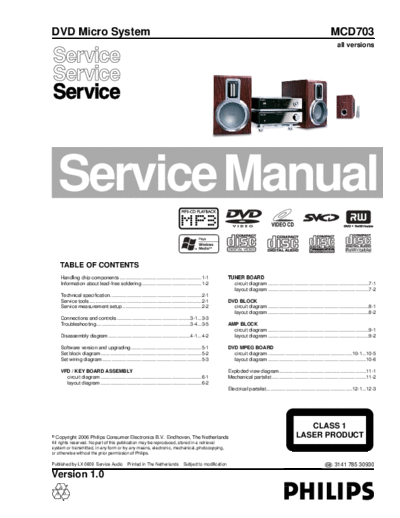

Image preview - the first page of the document
>> Download MCD703_ET-SB-EX-SI_1216900209 documenatation <<
Text preview - extract from the document
DVD Micro System MCD703
all versions
Service Manual
TABLE OF CONTENTS
Handling chip components ............................................................1-1 TUNER BOARD
Information about lead-free soldering ............................................1-2 circuit diagram ..........................................................................7-1
layout diagram ..........................................................................7-2
Technical specification...................................................................2-1
Service tools ..................................................................................2-1 DVD BLOCK
Service measurement setup ..........................................................2-2 circuit diagram ..........................................................................8-1
layout diagram ..........................................................................8-2
Connections and controls ......................................................3-1...3-3
Troubleshooting.....................................................................3-4...3-5 AMP BLOCK
circuit diagram ..........................................................................9-1
Disassembly diagram ............................................................4-1...4-2 layout diagram ..........................................................................9-2
Software version and upgrading ....................................................5-1 DVD MPEG BOARD
Set block diagram ..........................................................................5-2 circuit diagram ..............................................................10-1...10-5
Set wiring diagram .........................................................................5-3 layout diagram ........................................................................10-6
VFD / KEY BOARD ASSEMBLY Exploded view diagram................................................................11-1
circuit diagram ..........................................................................6-1 Mechanical partslist .....................................................................11-2
layout diagram ..........................................................................6-2
Electrical partslist...............................................................12-1...12-3
