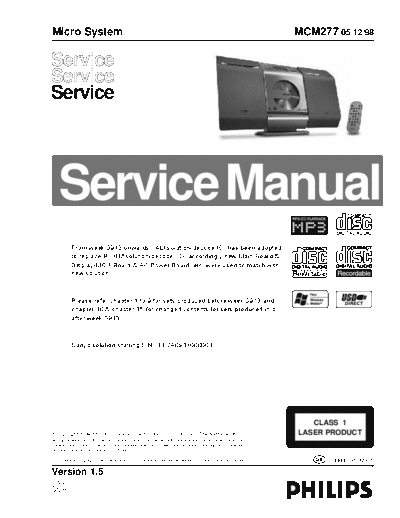

>> Download PHILIPS_MCM277_05_12_98 documenatation <<Text preview - extract from the documentMicro System MCM277/05/12/98
Service
Service
Service
Service Manual COMPACT
DIGITAL AUDIO
From week 0913 onwards, ALI solution(decode IC) has been adopted
to replace ROHM solution(decode IC), accordingly new Main Board &
Display/MCU Board & AC Power Board, etc. were used to match with
new solution.
.
Please refer chapter 1 to 9 for sets produced before week 0913 and
chapter 10 & chapter 15 for changed contents for sets produced in or
after week 0913.
Sanyo solution starting S/N: EF2A0913000001.
CLASS 1
