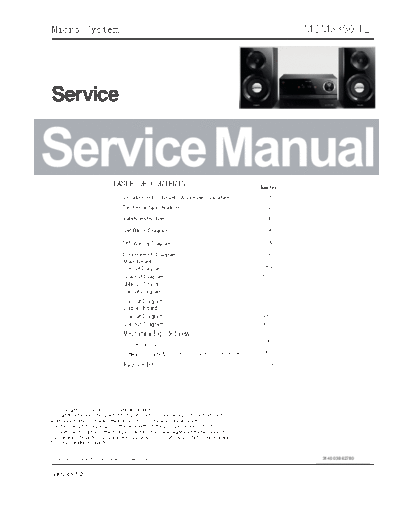

Image preview - the first page of the document
service


>> Download service documenatation <<

Text preview - extract from the document
Micro System                                                                                                                    MCM3350/12




                              TABLE OF CONTENTS                                                                    Chapter
                                   Location of PC Boards & Versions Variation ........................ 1
                                   Technical Specifi ations................................. .................... 2
                                                  c
                                   safety instruction...................................................................3

                                   Set Block Diagram.................................................................4

                                   Set Wiring Diagram ...............................................................5

                                   Disassembly Diagram ...........................................................  6
                                   Main Board
                                   Circuit Diagram    ................................................. ...........7-1
                                    Layout Diagram.............................................................. 7-2
                                   SMPS Board
                                   Circuit Diagram..................................................... ...... ...
                                                                                                   . .
                                   Layout Diagram ...............................................................
                                   Display Board
                                    Circuit Diagram................................................................9-1
                                   Layout Diagram ...............................................................9-2
                                    Mechanical Exploded View ..................................................10
                                   Trouble Shooting................................................................11
                                   Software Upgrade & Procedure To Restore Product Setting............12
                                   Revision list ......................................................................... 13




   Copyright 2013 Gibson Innovations Limited.
All rights reserved. No part of this publication may be reproduced, stored in
a retrieval systemor transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Gibson
Innovations. Philips and the Philips'Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used by Gibson Innovations Limited under license
from Koninklijke Philips N.V.


Published by Liu wk1520.4 Subject to modification                                                                                 3140 038 62780


Version 1.0
          1 Location of PC Boards & Versions Variation
  Location of PC Boards

                SMPS Board                        Main Board




                                                      Display Board




V
Versiongs Variation
    i     V i ti

                   Type/Version             MCM3350
                                    /12
Board in used      service Policy
                                y   (EU)
                                    ( )
Main Board                          M+C
Display Board                       M+C
SMPS Board                          M+C

Tips:C Component
Tips:C--Component Level Repair
     M--Module Level Rpair
                                    2 Technical Specifcatons
MODEMCM3350

TEST CONDITIONS:

1.POWER SUPPLY: AC.Accordiing to Ver

2.REF OUTPUT: 650W , Sound effect off

3.FM MONO: 22.5KHz Dev,1KHz MODULATION ,75 IMPEDANCE ,60dBu

4.FM STEREO : MAIN+SUB = 50KHz, PILOT : 10KHz,COMPOSITE: 40.0KHz

FM SECTION

                                                                                     TEST DATA
NO                      TEST ITEMS                      UNIT       NOM.    LIMIT
                                                                                    1#       2#

                                                                           87.5     87.5    87.5
1               Fvequency Range                         MHz
                                                                           108      108     108

                                               88                   18      22       12      12

2         26dB QUENTING SENSITIVITY            98        dB         18      22       12      12

                                              107                   18      22       12      12

3             -3dB LIMITING POINT              98        dB         20      26       5       6

4             IF REJECTION 98MHZ               98        dB         65      60      >126    >126

5             IMAGE REJECT 98MHZ              107        dB         30      25      >126    >126

                                             MONO                   65      60       68      68
6                     S/N
                                               ST                   55      50       59      58

7             OVERALL DISTERTION                         %          2       3       0.16    0.18

8              MODULATION HUM                            dB         50      45       /       /

                                             88MHz       dBf        28      36       32      30

9                TUNING SENS                 98MHz       dBf        28      36       32      31

                                            107MHz       dBf        28      36       32      31

10       STREO CHANNEL SEPARATION            1KHZ        Db         25      18       47      48

11              THD 10% POWER                1KHZ        W          50    50'
