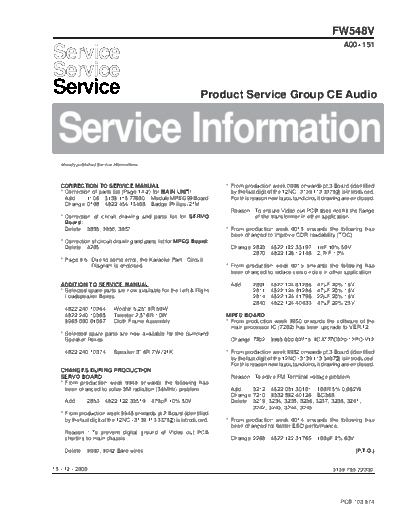

Image preview - the first page of the document



>> Download fw548v__177 documenatation <<

Text preview - extract from the document

                                                                                                                   FW548V
                                                                                                                        A00 - 151
Service
Service
Service                                                        Product Service Group CE Audio


  Service Information
   Already published Service Informations :



   CORRECTION TO SERVICE MANUAL                                       * From production week 0006 onwards pt.3 Board (identified
   * Correction of parts list (Page 14-2) for MAIN UNIT:                by the last digit of the 12NC - 3139 113 33783) is introduced.
     Add      1106 3139 118 77600 Module MPEG99 Board                   For this reason new layout and circuit drawing are enclosed.
     Change 0108 4822 454 13408 Badge Philips /21M
                                                                       Reason : To ensure Video out PCB does not hit the flange
   * Correction of circuit drawing and parts list for SERVO                     of the transformer in other application.
     Board:
     Delete 3855, 3856, 3857                                          * From production week 0015 onwards the following has
                                                                        been changed to improve CDR readability (TOC).
   * Correction of circuit drawing and parts list for MPEG Board:
     Delete 4205                                                       Change 2823 4822 122 33197            1nF 10% 50V
                                                                              2870 4822 126 12148            2,7nF 10%
   * Page 6-5: Due to some error, the Karaoke Part - Circuit
               Diagram is enclosed.                                   * From production week 0015 onwards the following has
                                                                        been changed to reduce servo noise in other application.

   ADDITION TO SERVICE MANUAL                                          Add       2801    4822 124 81286      47
