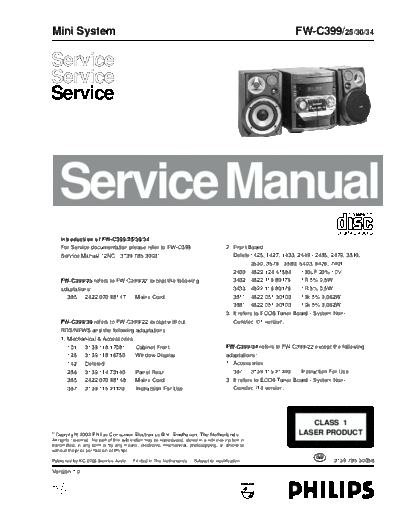

Image preview - the first page of the document
>> Download fw-c399 documenatation <<
Text preview - extract from the document
Mini System FW-C399/25/30/34
Service
Service
Service
Service Manual COMPACT
DIGITAL AUDIO
Introduction of FW-C399/25/30/34
For Service documentation please refer to FW-C399 2. Front Board
Service Manual 12NC: 3139 785 30031 Delete 1425, 1427, 1433, 2449 - 2455, 2479, 3510,
3530, 3576 - 3580, 5403, 6426, 7401
2400 4822 124 41584 100uF 20% 10V
FW-C399/25 refers to FW-C399/22 except the following 3432 4822 116 80176 1R 5% 0,5W
adaptations: 3433 4822 116 80176 1R 5% 0,5W
385 2422 070 98147 Mains Cord 3511 4822 051 30103 10k 5% 0,062W
3581 4822 051 30103 10k 5% 0,062W
3. It refers to ECO6 Tuner Board - System Non-
FW-C399/30 refers to FW-C399/22 except without Cenelec /01 version.
RDS/NEWS and the following adaptations:
1. Mechanical & Accessories
101 3139 118 17081 Cabinet Front FW-C399/34 refers to FW-C399/22 except the following
128 3139 118 16750 Window Display adaptations:
142 Deleted 1. Accessories
256 3139 114 73140 Panel Rear 387 3139 115 21240 Instruction For Use
385 2422 070 98148 Mains Cord 3. It refers to ECO6 Tuner Board - System Non-
387 3139 115 21120 Instruction For Use Cenelec /14 version.
