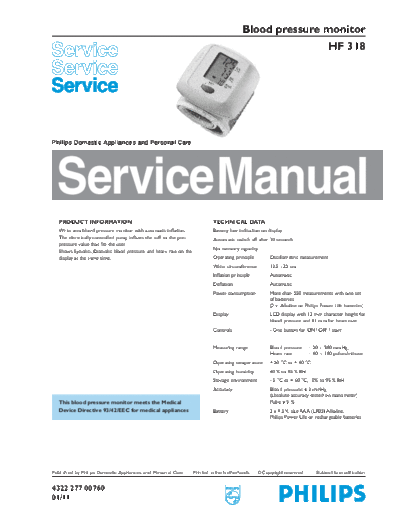

Image preview - the first page of the document
>> Download HF318_SM_4573802905 documenatation <<Text preview - extract from the document Blood pressure monitor
HF 318
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION TECHNICAL DATA
Wrist arm blood pressure monitor with automatic inflation. Battery low indication on display
The electrically controlled pump inflates the cuff to the pre- Automatic switch off after 30 seconds
pressure value that fits the user.
No memory capacity
Shows Systolic-, Diastolic blood pressure and heart rate on the
display at the same time. Operating principle Oscillometric measurement
Wrist circumference 13.5 - 22 cm
Inflation principle Automatic
Deflation Automatic
Power consumption More than 250 measurements with one set
of batteries
(2 x Alkaline or Philips Power Life batteries)
Display LCD display with 12 mm character height for
blood pressure and 11 mm for heart rate
Controls - One button for ON/ OFF / start
Measuring range Blood pressure : 20 - 280 mmHg,
Heart rate : 40 - 180 pulses/minute
Operating temperature + 10
