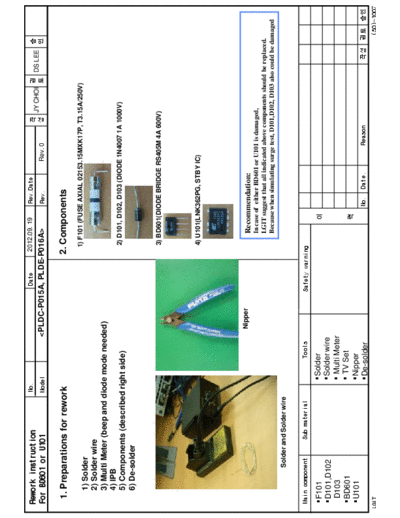

Image preview - the first page of the document
>> Download Rework instruction for surge failure in Power supply documenatation <<
Text preview - extract from the document
Rework instruction No. Date 2012.09. 19 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
1. Preparations for rework 2. Components
1) F101 (FUSE AXIAL 02153.15MXK17P, T3.15A/250V)
1) Solder
2) Solder wire
3) Multi Meter (beep and diode mode needed)
4) IPB
2) D101, D102, D103 (DIODE 1N4007 1A 1000V)
5) Components (described right side)
6) De-solder
3) BD601(DIODE BRIDGE RS405M 4A 600V)
4) U101(LNK362PG, STBY IC)
Nipper Recommendation:
In case of either BD601 or U101 is damaged,
LGIT suggest that all indicated above components should be replaced.
Because when simulating surge test, D101,D102, D103 also could be damaged
Solder and Solder wire
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
3. Preparation for ESD control during rework
1) Wear the ESD gloves and ESD wrist strap 2) Work table should be covered with ESD mat
ESD gloves
ESD wrist strap ESD mat
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
4. Confirm the location
U101(LNK362) U101(LN
K362)
D101, D102, D103 D101, D102, D103
(1N4007) (1N4007)
BD601(RS405M) BD601(RS405M)
F101(T3.15A/250V) F101(T3.15A/250V)
TOP BOTTOM
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
5. Diagnosis and Rework flow
1) F101 (FUSE AXIAL 02153.15MXK17P, T3.15A/250V)
During
mode Result
Test
Sounds
OK
Beep Heard
No sound NG
Test result assessment
confirm failure using multi meter
- Direction is not concern for this If measured range is wrong,
- Mode: beep mode of multimeter Change to new one
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
5. Diagnosis and Rework flow
2) D101, D102, D103 (MMSD4148)
Mode Position Red(+) Black(-) OK range
D101 1 2 0.57~0.59 V
diode D102 1 2 0.57~0.59 V
D103 1 2 0.57~0.59 V
Test result assessment
confirm failure using multi meter
- Direction is important for this 1 2
- Mode: diode mode
If measured range is wrong,
Change to new one
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
5. Diagnosis and Rework flow
3) BD601(DIODE BRIDGE RS405M 4A 600V)
Mode Position Red(+) Black(-) OK range
4 3 0.56~0.58V
4 2 0.56~0.58V
diode BD601
4 1 0.49~0.51V
2 1 0.56~0.58V
Test result assessment
If measured range is wrong,
Change to new one
confirm failure using multi meter
- Direction is important for this
1 2 3 4
- Mode: diode mode
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
5. Diagnosis and Rework flow
4) U101(LNK362PG, STBY IC)
Mode Position Red(+) Black(-) OK range
8 5 0.57~0.59V
diode U101 4 4 0.65~0.68V
4 3 0.53~0.55V
Test result assessment
confirm failure using multi meter
- Direction is important for this
- Mode: diode mode
If measured range is wrong,
1 8 Change to new one
2 7
3
4 5
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
Rework instruction No. Date 2011.05. 24 Rev.Date
JY CHOI DS LEE
For BD601 or U101 Model Rev. Rev. 0
6. Final TV Set test
Conduct TV set on/off test and confirm whether LPB on TV set works normally.
Main component Sub material Tools Safety warning
F101 Solder
D101,D102 Solder wire
D103 Multi Meter
BD601 TV Set
U101 Nipper
De-solder No. Date. Reason
LGIT
