Service Manuals, User Guides, Schematic Diagrams or docs for : Philips LCD TV (and TPV schematics) 42PFL7403d10 42pfl7403d-10 q529.1e_la_312278517666.part2
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

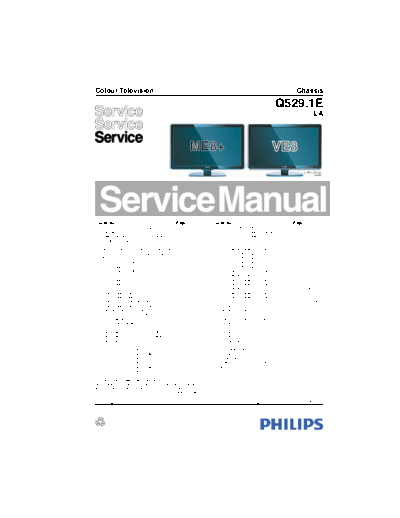

Image preview - the first page of the document
>> Download 42pfl7403d-10 q529.1e_la_312278517666.part2 documenatation <<
Text preview - extract from the document
Colour Television Chassis
Q529.1E
LA
ME8+ VE8
I_17661_000.eps
140408
Contents Page Contents Page
1. Technical Specifications, Connections, and Chassis 8 LED Back UPEC Panel: DC / DC (AL2) 74 77
Overview 2 8 LED Back UPEC Panel: uC Block (AL3) 75 77
2. Safety Instructions, Warnings, and Notes 6 8 LED Back UPEC Panel: LED Drive (AL4) 76 77
3. Directions for Use 7 4 LED Lite-On Panel: LED Drive (AL1) 78 81
4. Mechanical Instructions 8 4 LED Lite-On Panel: DC / DC (AL2) 79 81
5. Service Modes, Error Codes, and Fault Finding 14 4 LED Lite-On Panel: uC Block (AL3) 80 81
6. Block Diagrams, Test Point Overview, and 4 LED MD OPAMP Lite-on (32") (AL1) 82 84
Waveforms 4 LED MD OPAMP Lite-on (32") (AL2) 83 84
Wiring Diagram 32" (ME8) 45 6 LED MD OPAMP Lite-on (42") (AL1) 85 87
Wiring Diagram 32" (VE8) 46 6 LED MD OPAMP Lite-on (42") (AL2) 86 87
Wiring Diagram 37" (ME8) 47 6 LED Lite-On Panel: LED Drive (AL1) 88 91
Wiring Diagram 42" + 47" (ME8) 48 6 LED Lite-On Panel: DC / DC (AL2) 89 91
Wiring Diagram 42" (VE8) 49 6 LED Lite-On Panel: uC Block (AL3) 90 91
Wiring Diagram 47" (VE8) 50 8 LED Lite-On Panel: LED Drive (AL1) 92 96
Wiring Diagram 52" (VE8) 51 8 LED Lite-On Panel: DC / DC (AL2) 93 96
Block Diagram Video 52 8 LED Lite-On Panel: uC Block (AL3) 94 96
Block Diagram Audio 53 8 LED Lite-On Panel: LED Drive (AL4) 95 96
Block Diagram Control & Clock Signals 54 Small Signal Board (6214.4 version) (B01-B10) 97-150 154-163
Block Diagram Main Display Supply (42") 55 SSB: SRP List Explanation 151
SSB: Test Points (Top Side) 56 SSB: SRP List Part 1 152
SSB: Test Points (Bottom Side) 57 SSB: SRP List Part 2 153
I2C IC Overview 58 Small Signal Board (6214.6 version) (B01-B10) 164-216 221-230
Supply Lines Overview 59 SSB: SRP List Explanation 217
7. Circuit Diagrams and PWB Layouts Drawing PWB SSB: SRP List Part 1 218
Main Power Supply IPB 42": Stby, MF (A1) 60 63-64 SSB: SRP List Part 2 219
Main Power Supply IPB 42": HV Inverter (A2) 61 63-64 SSB: SRP List Part 3 220
Main Power Supply IPB 42": DC / DC (A3) 62 63-64 AmbiLight Interface Panel (FA) 231 231
4 LED Back UPEC Panel: LED Drive (AL1) 65 68 IR & LED Panel (VE) (J) 232 233
4 LED Back UPEC Panel: DC / DC (AL2) 66 68 Light Guide Panel (L) 236 237
4 LED Back UPEC Panel: uC Block (AL3) 67 68 8. Alignments 243
6 LED Back UPEC Panel: LED Drive (AL1) 69 72 9. IC Data Sheets 261
6 LED Back UPEC Panel: DC / DC (AL2) 70 72 10. Spare Parts List & CTN Overview 274
6 LED Back UPEC Panel: uC Block (AL3) 71 72 11. Revision List 274
8 LED Back UPEC Panel: LED Drive (AL1) 73 77
