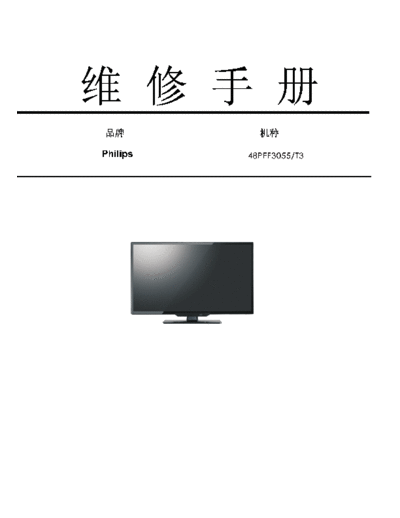

Image preview - the first page of the document
>> Download 48PFF3055 documenatation <<Text preview - extract from the documentPhilips
Description 48PFF3055/T3 48" FHD DLED TV (48L51F)
Size and backlight 48" DLED
Resolution FHD 1920x1080, Widescreen 16:9 Aspect Ratio
Refresh Rate 60Hz
Brightness 280 cd/m2 280~330
Panel
Dynamic Contrast Ratio 1000:1
Response Time 8ms
Horizontal: 176 Degrees
Viewing Angle
Vertical: 176 Degrees
ATV System NTSC+PAL
DTV System DTMB
Sound system ID/KB/G M
TV System Nicam N/A
Teletext N/A
Digital Amplifier N/A
Android System N/A
Composite + L/R Auido 2
Component + L/R Audio 1
Signal Input HDMI 2
USB 2
PC Input Analog RGB (Dsub)
Buit-in Speakers 8 Watts Total*2
Headphone Output 1
Audio Output
Line Output 1*AV-OUT
Digital Audio Output (S/PDIF) 1*coaxial
Input range Universal 100~240 VAC 50/60Hz
Ambient Temperature 5 to 40 deg C
Power Consumption 110Watts ( Max. )
Standby power consumption 0.5W
Energy Efficiency Class 3
Languages Chinese(default,English Multi-languages
OSD Function Picture Mode Vivid,Standard,Soft,Personal
Sound Mode Standard,Music,Cinema,Personal
Sleep Timer Off ,10 to 180 Min (10 min per adjust)
Chipset TSUMV69+2in1 PSU
3D Comb Filter, 3D Color Management, Cross
Picture Enhancement Color Reduction,MPEG Noise Reduction,
Montion Adaptive De-interlacer
Video playback PAL,SECAM
Music Support MP3M4AAAC
Picture Support JPEGBMPPNG
Containers AVI, MKV, MPEG-1, MPEG-2,
Features MPEG-4,Motion JPEG, MPEG2_HD
Video support MPEG4_SD, MPEG4_HD, H.264
dat mpg mpeg1/2H.264H.265vob
mkvdivaviasf
Screen adjustment format Wide screen, 4:3, Movie 16:9,Subtitle Zoom
Treble
Bass
Sound Enhancement
AVL
Virtual Surround
Computer inputs up to 1920
