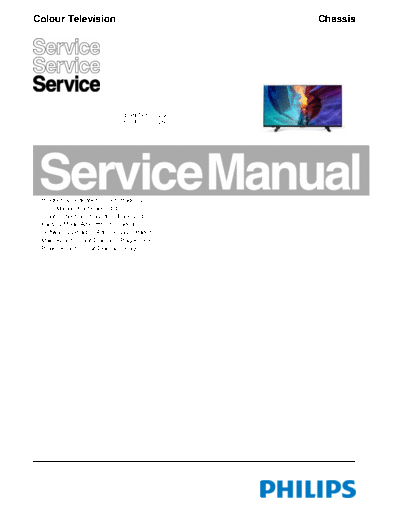

Image preview - the first page of the document
55PFT6100S


>> Download 55PFT6100S documenatation <<

Text preview - extract from the document
Colour Television                                 Chassis




                             43PFT6100S/56
                             55PFT6100S/56




 Product Specification Sheet (Page1-23)
 User Manuel Part(Page24-41)
 Troubleshooting Procedure(Page42-47)
 Factory Mode Adjustment (Page48-50)
 Software Upgrades(After Service)(Page51-61)
 Main Board Circuit Diagram (Page62-69)
 Power Board Circuit Diagram (Page70)





Product Specification Sheet
                              43" FHD STV(43S91F-DVB)       55" FHD STV(55S91F-DVB)
Series name                          43PFT6100                     55PFT6100
Set Product Manager
Set Product Manager in
outsourcing company
E-mail address of main
contact in outsourcing
company
Set Project Manager
Status
CR (yyyyww) of leading
set
Platform/Chipset                T8E3-6A628 DVB-T2             T8E3-6A628 DVB-T2
Processor type (CPU) /
GPU




Picture/Display




                                                        1
RC




Backlight Type (Panel
                                     DLED                       DLED
Supplier)
Diagonal Screen Size                 42.51"                     54.64"
Perfect Motion Rate
Picture Performance               PMR 200 HZ                  PMR 200 HZ
Index
Panel Frequency (Native)             60HZ                       60HZ
Chasis Frequency                     60HZ                       60HZ
Backlight Dimming                    PWM                        PWM
Scanning Segments
                                48.25--863.25MHZ           48.25--863.25MHZ
(amount)
Panel Resolution                   1920*1080                  1920*1080
Aspect ratio                          16:9                       16:9
Brightness (Home Vivid
                           Min220cd/m2 Typ:260cd/m2    Min:300cd/m2Typ:350cd/m2
Mode) cd/m
