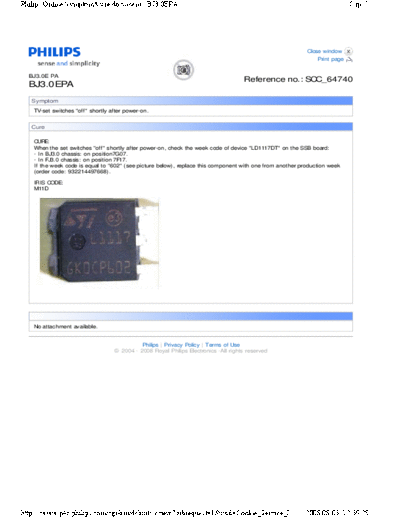

Image preview - the first page of the document
BJ3.0EPA SCC64740


>> Download BJ3.0EPA SCC64740 documenatation <<

Text preview - extract from the document
Philips Online Symptom/Cure document - BJ3.0EPA                                                                             . 1




                                                                                                           Close window
                                                                                                               Print page


  BJ3.0E PA
                                                                                     Reference no.: SCC_64740
  BJ3.0EPA
   Symptom
    TV-set switches "off" shortly after power-on.


   Cure

    CURE:
    When the set switches "off" shortly after power-on, check the week code of device "LD1117DT" on the SSB board:
    - In BJ3.0 chassis: on position7G07.
    - In FJ3.0 chassis: on position 7F17.
    If the week code is equal to "602" (see picture below), replace this component with one from another production week
    (order code: 932214497668).

    IRIS CODE:
    M11D




    No attachment available.
