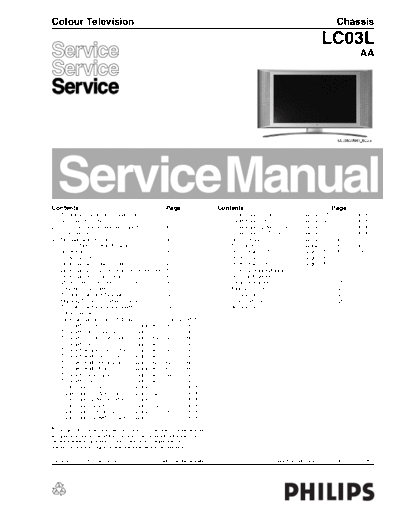

Image preview - the first page of the document
>> Download LC03L_ET-SB-BA-SI_1238392579 documenatation <<
Text preview - extract from the document
Colour Television Chassis
LC03L
AA
Contents Page Contents Page
1 Technical Specifications, Connections, Scaler Panel: PC-In (Diagram C7) 82 86-95
and Chassis Overview 2 Scaler Panel: uP (Diagram C8) 83 86-95
2 Safety Instructions, Warnings, and Notes 4 Scaler Panel: Video Converter (Diagram C9) 84 86-95
3 Directions for Use 5 Scaler Panel: HDTV Decoder (Diagram C10) 85 86-95
4 Mechanical Instructions 36 Side I/O Panel (Diagram D) 96 97
5 Service Modes, Error Messages, Top Control (Diagram E) 96 98
and Repair Tips. 40 Inverter Panel (TN) (Diagram IN) 99 100
6 Block Diagrams Inverter Panel (IPS) (Diagram IN1) 101 103
Block Diagram (Tuner-IF-Video) 47 Inverter Panel (IPS) (Diagram IN2) 102 103
Block Diagram (TV Control and Inverter Panel) 48 Front LED Panel(Diagram J) 104 104
Block Diagram (Scaler Board) 49 8 Electrical Alignments 105
I2C-IC's and Error Codes Overview 50 9 Circuit Descriptions 109
Powerlines Overview 51 Abbreviation List 121
Testpoint Overview TV Board 52 IC Data Sheets 123
Mapping Testpoints and Waveforms 53 10 Spare Parts List 126
Testpoint Overview Scaler Board 54 11 Revision List 132
Wiring Diagram 55
7 Electrical Diagrams and PWB lay-outs Diagram PWB
TV Board: U_Cont (Diagram A1) 56 66-75
TV Board: Tuner Function (Diagram A3) 57 66-75
TV Board: IF Video Sync Chr. (Diagram A4) 58 66-75
TV Board: SAW Filter (Diagram A5) 59 66-75
TV Board: Analog Comb Filter (Diagram A6) 60 66-75
TV Board: Audio Delay Line (Diagram A7) 61 66-75
TV Board: Audio Processing (Diagram A8) 62 66-75
TV Board: Audio Amplifier (Diagram A9a) 63 66-75
TV Board: Local Supply (Diagram A10) 64 66-75
TV Board: Cinch I/O (Diagram A11) 65 66-75
Scaler Panel: Power (Diagram C1) 76 86-95
Scaler Panel: I/O & Interface (Diagram C2) 77 86-95
Scaler Panel: Video Decoder (Diagram C3) 78 86-95
Scaler Panel: Scaler (Diagram C4) 79 86-95
Scaler Panel: Output (LVDS) (Diagram C5) 80 86-95
Scaler Panel: SDRAM (Scaler) (Diagram C6) 81 86-95
