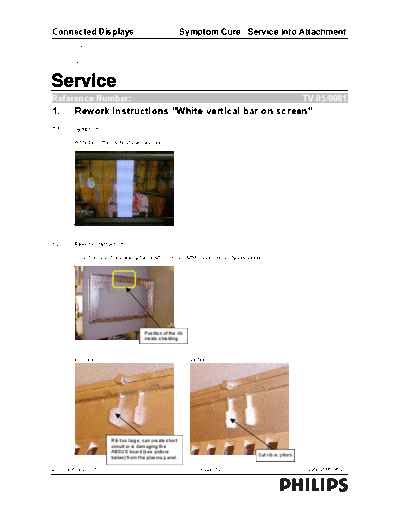

Image preview - the first page of the document
>> Download tv05_0081_white_vertical_bar1_677 documenatation <<
Text preview - extract from the document
Connected Displays Symptom Cure / Service Info Attachment
Reference Number: TV-05/0081
1. Rework Instructions "White vertical bar on screen"
1.1. Symptom
White bar in the middle of plasma screen:
1.2. Rework instruction :
1. Cut the rib on the shielding frame 42" (3104 328 32641) as shown on figures below:
Position of the rib
inside shielding
BEFORE AFTER
Rib too large, can create short
circuit or is damaging the
ABSUS board (see picture
Cut rib w. pliers
below) from the plasma panel.
Document version: 1.0 Page: 1/2 Date: 2005-06-23
Connected Displays Symptom Cure / Service Info Attachment
2. Verify if the ABSUS board of the SDI panel shows any damaged components at the location of the rib.
Document version: 1.0 Page: 2/2 Date: 2005-06-23
